When selecting the optimal structural steel for your project, understanding the critical distinctions between ASTM A500 and ASTM A36 prevents costly errors and ensures structural integrity. While both are trusted materials for construction and structural projects, their fundamental properties and characteristics differ significantly, making the choice crucial for safety and performance.
This guide offers an in-depth A500 vs A36 comparison, detailing how their yield strength, physical shapes, typical applications, and cost factors diverge. By explaining these technical specifics, we ensure you can confidently determine the right fit for your next fabrication or engineering need.
Overview of A500 Steel vs A36 Grades
Whether you’re a project manager or an engineer, A500 steel vs A36 distinctions help you make an informed decision. Both of the grades possess different attributes and are used for various purposes. Below is a brief overview:

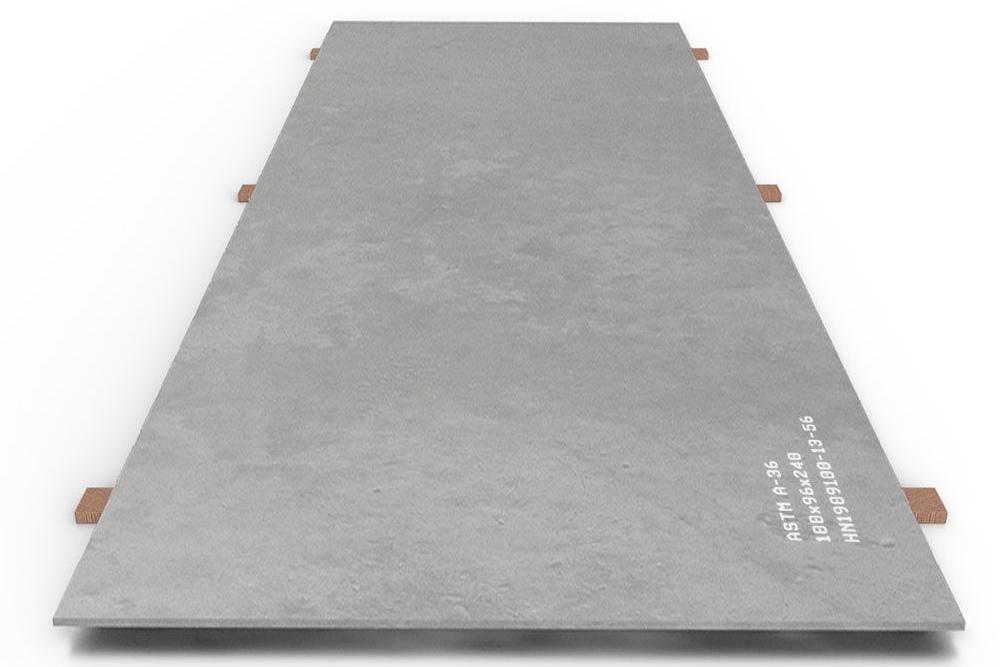

- A36 is hot-rolled carbon steel known for its high strength and weldability. According to ASTM International, this specification is mainly deployed for buildings, bridges, and general structural applications.
- On the other hand, A500 refers to seamless carbon steel that undergoes cold-forming. It is produced in hollow structures for tubing applications. This steel type exists in A, B, C, and D grades that offer different levels of strength. Developers employ this ASTM steel for demanding structural projects.
Shape and Form: What’s Available?

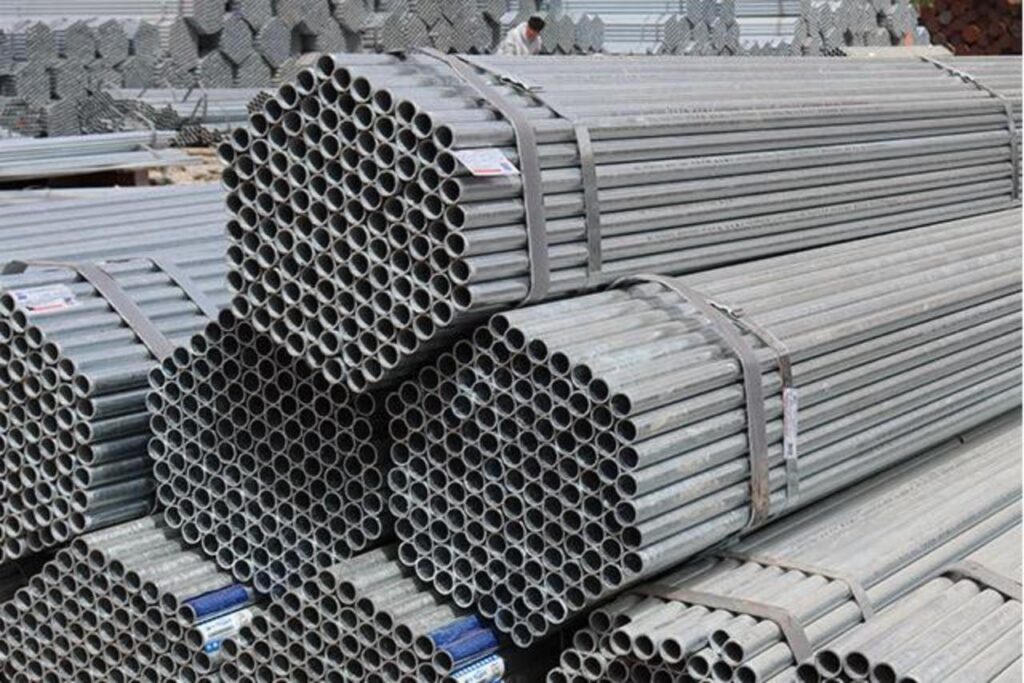

In contrast, A500 is restricted to hollow structural sections (HSS). The American Institute of Steel Construction reports that ASTM A500 steel is available in round, square, and rectangular shapes. It makes this grade suitable for specific projects.
Mechanical Properties Comparison
When evaluating A500 steel vs A36, their performance varies widely due to diverse mechanical properties. Let’s discuss each attribute in detail:
Tensile Strength and Yield Strength
These mechanical properties determine the load-bearing capacity of steel. The A36 typically offers a yield strength of 36 ksi and a tensile strength of 58–80 ksi. This makes it suitable for general construction applications where moderate strength is acceptable.
However, where higher load resistance is required, A500 is compatible. It provides significantly higher strength as compared to A36 steel. For example, the yield strength starts around 46 ksi for Grade B. Moreover, the tensile strength begins at 58 ksi and goes up to 70 ksi for higher grades.
Load-Bearing Capacity
Load-bearing capacity determines how well steel performs in structural frameworks. A36 has a reduced ability to handle heavy loads due to lower strength. It is more suitable for plates, bars, and structural shapes where extreme strength is not the primary requirement.
On the other hand, the higher strength of A500 translates directly into improved load-bearing performance. In structural tubing, when comparing A500 steel vs A36, the former type demonstrates superior resistance under compression, bending, and torsion. It makes this steel type the preferred choice for modern hollow structural section (HSS) designs.
Ductility and Toughness
Ductility reflects a material’s ability to bend without breaking. A36 is known for its good ductility. When distinguishing ASTM A500 vs A36, the steel plate is easier to form, roll, and bend into various shapes. This flexibility allows it to be used in projects requiring custom shapes or modifications.
A500 is slightly less ductile than A36 steel grades. It’s because of its composition and strength. So, they won’t stretch or elongate as much as A36 types before fracturing. However, the A500 structures excel in toughness. It enhances their ability to absorb energy and withstand impacts.
Machinability
Machinability indicates how easily steel can be cut, shaped, or processed. A36 is easier to machine, drill, and cut. Fabricators often prefer it for activities that require precision machining.
However, the higher strength of A500 can make machining more demanding. Here, the tools encounter greater resistance when cutting or drilling through the material. It often results in increased tool wear and slower cutting speeds.
Weldability
A36 can be welded easily compared to A500. Using standard techniques, the developers can perform the process efficiently. Also, its composition allows for clean, reliable welds without defects.
A500 steel is also weldable but requires careful handling. Its cold-formed nature can present some issues during the operations.
Environmental Resistance
In corrosive environments, A36 is prone to rusting without protective coatings. Here, developers need to take protective measures like painting or galvanizing. These actions are essential for long-term performance.
In the context of ASTM A500 vs A36, A500 provides slightly better environmental resistance. Its durability and strength make it a prominent choice in harsh conditions. Also, this steel grade offers superior protection from corrosion or stress.
Factors of Comparison | A36 Steel | A500 Steel |
Yield and Tensile Strength | Lower than A500 | Higher Yield strength |
Load-Bearing Capacity | Lower tensile strength | Greater than A36 steel |
Ductility and Toughness | More ductile but less tough | Less ductile but offers high toughness |
Machinability | Easy to machine | Slightly harder to machine than A36 |
Weldability | Excellent | Good weldability that requires extra control |
Environmental Resistance | Less resistance than A500 | More resistance to corrosion or environmental stress |
Chemical Composition Comparison
The chemical composition determines a material’s fabrication behaviour. For example, A36 has relatively low carbon content, which makes it more ductile and easier to weld. In comparison, A500 is a low-alloy steel that contains elements boosting its strength and hardness.
Here is a snapshot of the chemical makeup of A500 steel vs A36 steel.
Elements | A36 (%) | A500 (%) |
Carbon | 0.25 | 0.26 percent |
Manganese | 0.60-090 | 0.60-1.35 |
Phosphorus | 0.04 max | 0.035 max |
Sulfur | 0.05 max | 0.035 max |
Silicon | 0.40 max | 0.10-0.30 |
Application Scenarios of A36 vs A500
Choosing between A500 steel vs A36 often depends on many factors. It includes shape requirements, mechanical properties, and fabrication needs of a project. Both steels have diverse industrial uses discussed below:
A36 Steel Applications
- Used for making structural components for buildings and bridges. It includes forming columns, girders, or frameworks.
- High machinability allows for the manufacturing of heavy equipment
- Construction of pressure vessels and tanks
- As it’s easier to bend, A36 is particularly useful for general fabrication procedures.
A500 Steel Applications
- Go to the choice for round, square, or rectangular tubes
- Used in trusses and load-bearing frameworks of buildings and bridges
- Ideal for projects where a high strength-to-weight ratio is required
- Due to its resistance to extreme environments, it’s perfect for outdoor use
Cost and Material Efficiency
When it comes to cost or material efficiency, the A500 steel vs A36 analysis is vital. It helps developers choose the right material as per their expectations.
A36 Cost and Efficiency Analysis
A36 grade is a more affordable option compared to A500. It’s formed through a simple hot rolling process, which is usually less expensive.
Although it’s budget-friendly, it has low yield strength. So, the developers might require more material to achieve the expected load capacity. This can be less material efficient.
A500 Cost and Efficiency Analysis
Whereas A500 undergoes more costly production processes. It requires precise control and high energy output. They add up to the overall cost.
Moreover, their high strength often reduces overall steel tonnage in a project. So they are more material efficient as compared to A36 grades.
Conclusion
In the A500 steel vs A36 analysis, each steel grade has specific characteristics and uses. The ultimate decision relies on your budget and project requirements. For high-quality materials, contact us today. We offer versatile options to fulfill your needs. Take our expert recommendations and redefine your operations now!
Want to know how A36 compares to A1011, A572, or 1018? Our related guides can help: A36 vs A1011, A36 vs A572, and A36 vs 1018.
FAQs
Can I weld A500 like A36?
Yes, A500 can be welded like A36, but with special care. Due to its high strength, there might be some defect risks. For that, you need to pay closer attention to heat control and techniques to avoid distortion. Follow AISC and AWC standards for reliable results.
What is the difference between ASTM A500 Grade B and Grade C?
A500 grade B and grade C differ on the basis of strength or efficiency. Grade C has a slightly higher ability to withstand load than Grade B. It makes this steel more durable for structural integrity.
