A537 Steel
A537 Steel

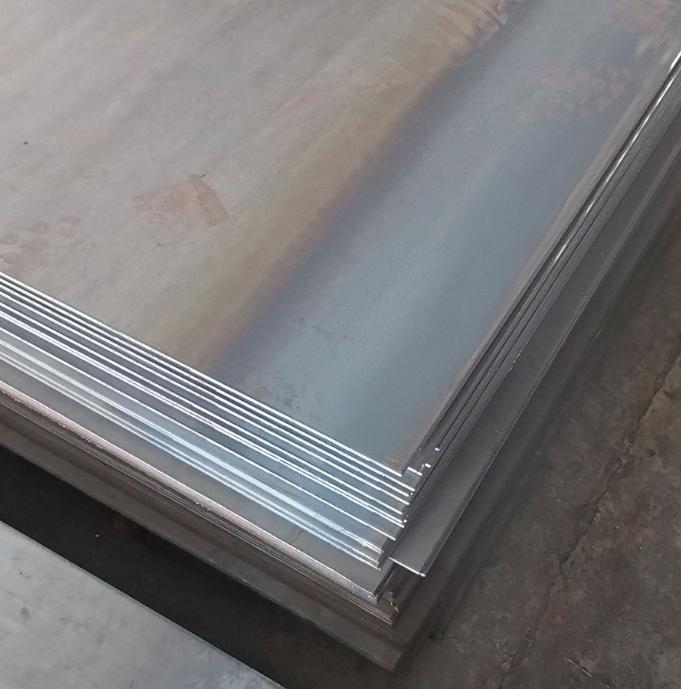

ASTM 537 steel plates are heat-treated, high-strength carbon-manganese-silicon plates designed for pressure vessels and heavy-duty applications. Known for their excellent toughness and strength, they perform well under high pressure and temperature. ASTM A537 is available in Class 1 (normalized), Class 2, and Class 3 (quenched and tempered), with A537 Grade 70 being a common choice. These plates are ideal for use in the oil, gas, and petrochemical sectors.
Zhaojian Steel supplies premium ASTM A537 pressure vessel steel plates in various grades, providing dependable strength and quick delivery at competitive prices.
Zhaojian Steel supplies premium ASTM A537 pressure vessel steel plates in various grades, providing dependable strength and quick delivery at competitive prices.
Product Specifications
| Property | Specification |
| Standard | ASTM A537 |
| Steel Type | Carbon-Manganese-Silicon (Heat-Treated Pressure Vessel Steel Plate) |
| Available Classes | Class 1 (Normalized), Class 2 & Class 3 (Quenched and Tempered) |
| Common Grade | A537 Grade 70 |
| Thickness Range | 4.76 mm – 101.6 mm (3/16″ – 4″) |
| Width Range | 1219 mm – 3048 mm (48″ – 120″) |
| Length Range | Up to 12,192 mm (480″) |
| Surface Finish | As rolled, shot blasted, or custom per order |
| Element | Content (%) |
| Carbon (C) | ≤ 0.24 |
| Manganese (Mn) | 0.85 – 1.20 |
| Silicon (Si) | 0.15 – 0.50 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
| Class | Yield Strength (ksi) | Tensile Strength (ksi) | Elongation (%) |
| Class 1 | ≥ 50 | 70 – 90 | ≥ 22 |
| Class 2 | ≥ 60 | 80 – 100 | ≥ 22 |
| Class 3 | ≥ 70 | 90 – 110 | ≥ 20 |
Need A Custom Quote
Or more information about this product? Contact our sales staff today!
More Details
Applications
Pressure Vessel Construction, Widely Used In Pipelines, Storage Tanks, Drilling Equipment, Boilers
FAQs
What Are the Key Benefits of ASTM A537 Steel Plate for Industrial Use?
ASTM A537 provides exceptional weldability, toughness, and high pressure resistance. Its adaptability in applications such as chemical processing, oil rigs, and power plants makes it a highly desired material for industrial use, ensuring durability and safety over the long term.
What are the different classes of ASTM A537 Steel Plate?
ASTM A537 comes in three classes: Class 1 (normalized), Class 2, and Class 3 (quenched and tempered), each with different mechanical properties.
Why should I choose Zhaojian Steel for ASTM A537?
Zhaojian Steel offers top-quality ASTM A537 Pressure Vessel Steel Plates with quick delivery, customized sizes, and competitive prices, making sure your projects stay on schedule and meet all requirements.
