Skip to content The success of many outdoor structures depends on the performance of support bars. They carry equipment loads for years while withstanding rust. And this is exactly where galvanized steel bars outshine painted and stainless steel bars. Hot-dip galvanized solid bars can maintain their rated load capacity over decades, with minimal maintenance. In this guide, you will explore the most common galvanized steel bar uses and where they deliver the greatest value in fabrication, fencing, support structures, and outdoor installations.
Why Galvanized Steel Bar Is Popular in Fabrication
Balancing strength, corrosion protection, machinability, and cost is rarely achieved in a single material. Hot-dip galvanized (HDG) bars are one of the few materials that can meet these requirements. This is why they are widely used in custom metalworking and fabrication projects. Their popularity comes from several practical advantages:
Predictable High Strength of Carbon Steel
The base metals used for galvanized steel bars are mostly low-carbon steel grades (such as ASTM A36 or S235JR). They provide high tensile strengths of 400 to 550 MPa and reliable yield strength.
These strength levels are almost similar to stainless steel, but galvanized steel grades come at a lower initial cost. Carbon steels can effectively bear uniform static loads, dynamic vibrations, and high impact forces.
Advanced Zinc Protection
Unlike liquid paint or powder coatings, galvanized coatings are chemically bonded to the steel. They can provide decades of protection with minimal maintenance compared to regular paint coating systems. Even if the coating is slightly damaged, the surrounding zinc can still provide sacrificial protection for the steel.
Processing Capabilities
With proper shop practices, galvanized steel bars can be safely processed. Many modern workshops have the necessary facilities for cutting, drilling, bending, and welding of galvanized bars. However, there are several critical safety precautions that should be strictly followed during processing.
- Welding galvanized surfaces can create toxic zinc fumes. So, the surrounding zinc should be removed roughly 1 to 2 inches back from the weld zone. During the welding process, providing proper ventilation and respiratory protection is also necessary.
- After cutting and welding, the damaged zinc layers should be restored with a suitable cold-galvanizing compound.
- After drilling, the newly formed inner surface should be cold galvanized.
Cost Effectiveness
Although stainless steel is superior in corrosion protection, it usually costs 3 to 5 times more than galvanized carbon steel. On the other hand, initially cheap paint coatings often require costly maintenance cycles every 5 to 10 years. Galvanized steel bars cost slightly more than painted steel but provide a service life of 20 – 50+ years with minimal maintenance. They have one of the lowest lifetime costs among metal materials used in industrial projects.
These advantages explain why galvanized steel bar uses are expanding across modern fabrication industries.

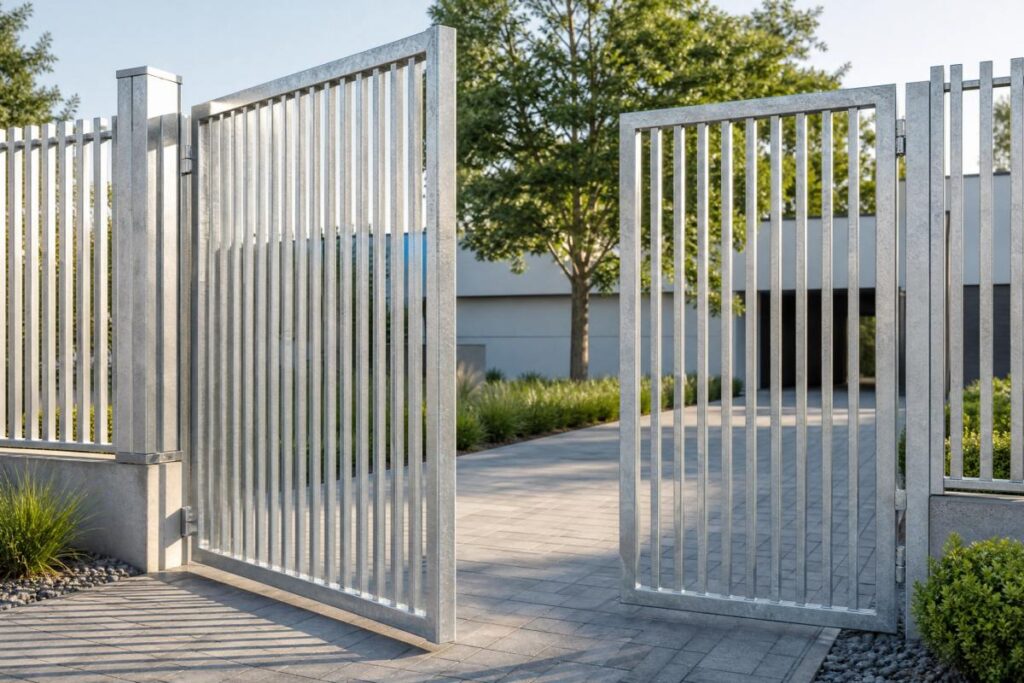

Using Galvanized Steel Bar for Fencing and Gates
Perimeter security systems and architectural gates face continuous outdoor exposure. During humid and rainy seasons, moisture can accumulate at joints and connection points, increasing the risk of corrosion. Galvanized steel bars can withstand these conditions for decades with minimal maintenance. They also eliminate the repainting and touch-up work associated with painted steels. Here are some of the most common galvanized steel bar uses in outdoor fencing systems.
Connectors and Brackets
When using steel bars as connectors and brackets, fabricators have to punch or drill these bars. These holes usually trap water and trigger crevice corrosion. Using galvanized bars with sufficient coating thickness can successfully prevent this corrosion risk. Therefore, flat and square galvanized steel bars are widely used to form mechanical connections between concrete walls, posts, and fence panels.
High-Stress Internal Gate Frames
Heavy automated gates need strong internal support to prevent sagging over time. Galvanized square or rectangular bars are ideal here because they provide high torsional rigidity. They can create tough corner braces and diagonal supports, keeping the gate perfectly straight under high wind loads. For outer frames and larger sections, you can combine them with galvanized steel tubes (hollow sections) to achieve a balance of strength and weight.
You can also securely weld them to form the corner gussets. Because the zinc coating is restored after welding, the internal joints provide the rust resistance from the inside out.
Adjustable Anti-Sag Rods
Long gates can easily bend downward over time. To prevent this, adjustable tension rods with threaded ends are installed across the gate frame. Galvanized round bars are one of the best choices for this role. Because of their smooth surface, you can precisely machine the threads without affecting the tensile strength of the bar. The galvanized coating can keep the threads clean and rust-resistant for years after installation.
Structural Frames and Ground Supports
Gate posts and sliding tracks face heavy friction and impact from rolling gate wheels. They also face constant exposure to mud and standing water. Solid round or square hot-dip galvanized bars provide the necessary surface hardness to endure this constant rolling wear. The zinc coating is strong enough to resist abrasion from the wheels, protecting both the track and the wheels from premature wear. In comparison, regular paint coatings can immediately wear away under these conditions.
Using Galvanized Steel Bar for Brackets and Supports
Rigid and non-yielding support components are essential for almost every industrial, commercial, and infrastructure project. Many of these parts carry continuous loads while being exposed to outdoor conditions. Because of this, galvanized bars have become a practical choice for fabricating durable brackets, supports, and mounting systems.
Heavy Industrial Brackets
Fabricators use thick galvanized flat bars to manufacture cantilever brackets, pipe hangers, and wall-mounting plates. These components provide the necessary support needed by heavy utility lines in damp environments, outdoor installations, and coastal facilities. The zinc coating reduces the risk of corrosion near anchor points over time.
Reinforcement Components and Gussets
When mounting heavy industrial pumps or air handling units on steel beams, galvanized bars work as stiffeners and load-distribution plates. These bars are placed right under the equipment’s isolation pads. They reduce localized stress and prevent beam deformation over time. These parts are frequently exposed to moisture, cleaning chemicals, condensation, and outdoor weather conditions. The galvanized coating is highly useful here to protect the structures against corrosion.
Precision Installation Hardware
Solid round bars with threaded ends, custom anchor bolts, and spacer sleeves are used to level and position equipment during installation. For such hardware, hot-dip galvanized bars provide durable corrosion protection while maintaining clean, functional threads.
Machinery Support Frameworks
Modular skid frames, conveyor supports, equipment stands, and factory walkways widely use galvanized square and flat bars. These structures support more than just the weight of machinery. They must also withstand vibration, twisting forces, and impact loads generated during operation. The combination of strength and corrosion resistance of galvanized bars is well-suited for these support applications.
Using Galvanized Steel Bar in General Construction
Beyond industrial infrastructure, applications of galvanized bars expand across light commercial framing, agricultural operations, and residential building sectors.
Light Structural Framing
Galvanized bars find many applications within greenhouses, solar panel racks, and light commercial frames. They are mostly used as purlins, cross-braces, and wall supports (girts). Since they come pre-protected against the weather, builders do not need to paint them on-site. This cuts down both construction time and labor costs.
Outdoor Hardware and Architectural Fixtures
Galvanized round and flat bars are used for outdoor building features that must last a long time. Common examples include fire escape ladders, window security grilles, safety cages, porch handrails, and heavy steel bases. Because of the zinc coating, they can withstand continuous exposure to weather for decades.
Outdoor Equipment Supports
Roof platforms, cell towers, and power substations use galvanized steel bar frameworks to hold heavy gear. Since the steel core conducts electricity safely, these are also used for grounding buses and lightning rods. The zinc coating keeps connections rust-free and reliable during long-term outdoor service.

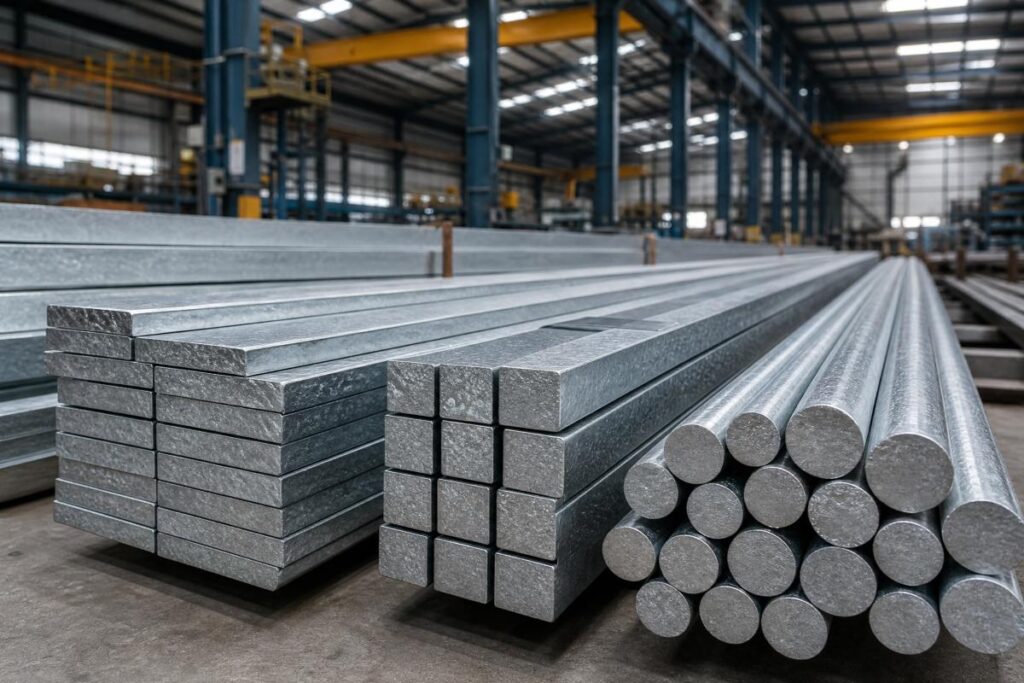

Choosing the Right Galvanized Steel Bar Profile
In summary of the applications discussed above, the table below shows the common applications of each galvanized bar profile.
Profile | Fabrication Uses | Outdoor Service Life | Advantages |
Flat Bars | Connectors, brackets, wall-mounting plates, cantilever brackets | 30 – 50+ Years | Easy to punch, bend, and weld |
Square / Rectangular Bars | Internal gate frames, corner braces, machinery skid frames | 20 – 25+ Years in high-stress applications | High torsional rigidity to reduce sagging and warping |
Round Bars | Adjustable anti-sag rods, gate tracks, anchor bolts | 30+ Years | Smooth surface for precise machining and clean threading |
What Buyers Need to Confirm Before Purchase
To maximize the benefits of different galvanized steel bar uses, verify the following specifications before placing an order:
- Bar Profile and Dimensions – Confirm the required profile (round, square, or flat bar) and specify the exact dimensions. Also, verify dimensional tolerances for straightness, thickness, width, or diameter.
- Steel Grade and Mechanical Properties – Always request a Mill Test Certificate (MTC) to verify the steel grade, chemical composition, yield strength, and tensile strength.
- Zinc Coating Specification – Confirm the galvanizing standard (such as ASTM A123 or EN ISO 1461) and confirm whether the coating thickness is suitable for your service environment.
- Processing Requirements – Inform the supplier about any drilling, punching, cutting, or threading requirements before galvanizing. Suppliers can then plan the best strategy to achieve complete corrosion protection on processed surfaces.
- Export Packing – For international shipments, confirm whether the bars are properly bundled, moisture-protected, and packed with suitable support materials. These are essential to minimize handling damage and white rust during transport.
Conclusion
Incorporating galvanized steel bars into fabrication projects, fencing systems, and support structures is a long-term investment. They significantly reduce maintenance requirements and minimize corrosion challenges. Even with these performance benefits, galvanized bars are more economical than many stainless steel alternatives. By selecting the correct bar profile, grade, and suitable galvanizing standards, you can further improve the durability and service life of your outdoor installations.
