Skip to content By combining the strength of carbon steel with the zinc protection, galvanized steel pipes deliver a balance of structural rigidity and long-term corrosion resistance. This makes them a strong choice for applications that demand durability under moisture, weathering, and chemical conditions. Galvanized pipes are also the primary option for upgrading uncoated (black) steel pipes, extending the service life by 25 to 40 years.
In this guide, you’ll explore real-world galvanized steel pipe uses, along with performance data and industry-specific applications.
Why Galvanized Steel Pipe Is Widely Used
Galvanized steel pipes (GI pipes) are widely used because of the superior, long-term corrosion resistance of the zinc coating, with the high strength and durability of carbon steel. It is highly popular as a cost-effective alternative to stainless steel and the industry standard for outdoor and fluid-handling applications.
The Higher Strength of Carbon Steel
As the base material of galvanized pipes, carbon steel provides significantly higher strength than many other piping materials. Given below is a concise comparison of some of the popular piping materials.
Material | Tensile Strength (MPa) | Properties |
Carbon Steel | 415 – 550 MPa | High strength and pressure resistance. |
Stainless Steel (304) | 515 – 620 MPa | Higher strength and excellent corrosion resistance (but expensive) |
PVC (Rigid) | 40 – 60 MPa | Lightweight, corrosion-resistant, but very low mechanical strength |
HDPE | 20 – 37 MPa | Flexible and impact-resistant, but weakest in tensile strength |
Plastic pipes such as PVC and HDPE have extremely lower strength compared to steels. They aren’t usually a standard option for high-load or high-pressure systems.
Stainless steel offers similar or slightly higher tensile strength than carbon steel pipes, along with inherent corrosion resistance. Therefore, stainless steel is also an excellent choice for demanding industrial applications. However, it comes at a significantly higher cost. In many cases, you can achieve the same performance with galvanized carbon steel at a considerably lower cost.
Excellent Corrosion Resistance of the Galvanized Zinc Coating
Galvanization of steel pipes creates a permanent chemical bond between the zinc coating and the steel substrate. Unlike paint or powder coatings, the galvanized layer will not peel or flake off even under high-stress industrial use.
Galvanized steel usually comes in a thickness range between 40 and 85 µm (G60 – G90) under standard grades. It protects the steel against rust both as a physical barrier and by sacrificial protection. This makes galvanized pipes suitable for structural, fluid transport, and outdoor applications where both strength and durability matter.
Good Performance in Outdoor and Humid Environments
One of the biggest advantages of galvanized steel pipes is their performance in harsh environments. Some of the main perks of using galvanized steel pipes are:
- Galvanized pipes show a good resistance to rain, humidity, and soil exposure
- Suitable for semi-exposed and fully exposed outdoor systems
- Typical service life ranges from 50 to 80 years in rural environments and from 20 to 50 years in urban/industrial conditions
- Compared to black steel, galvanized pipes have lower maintenance and replacement frequency.
Applications of Galvanized Steel Pipe in Construction
The construction sector holds the majority of galvanized steel pipe uses. This is the dominant choice for projects that need strength, durability, and ease of fabrication.

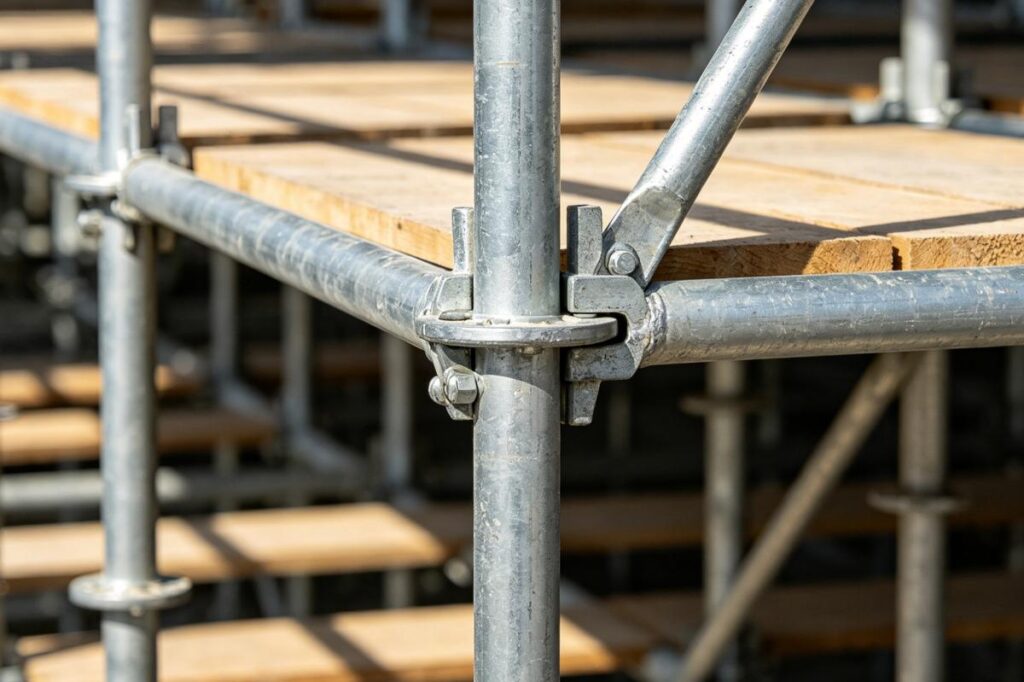

Galvanized Pipes for Scaffolding
Galvanized pipes (48.3mm in diameter) are the industry standard for scaffolding. They provide excellent safety, strength, and reusability for heavy-duty projects.
Unlike painted tubes that hide internal rust, hot-dip galvanized (HDG) tubes provide visible protection. Although the upfront cost is slightly higher, their durability and reusability greatly reduce the lifecycle cost compared to painted steel. To pick the right specification, you must always check compliance with BS EN 39, BS 1139, or ASTM A123 standards.
Aluminum pipes are a lighter alternative for mobile or quick-assembly systems, but they are weaker. They are only suited for light-duty applications, and galvanized steel remains the preferred choice for demanding environments.
Galvanized Pipe Railings and Handrails
Galvanized pipes provide excellent impact and corrosion resistance for railings and safety barriers in commercial, industrial, and public infrastructure. They provide a durable and low-maintenance solution for areas exposed to frequent use, weather, and mechanical wear.
If you aim for aesthetics and extended durability, the surface can be powder-coated over galvanization to form a duplex system.
Galvanized Pipes for Structural Frames & Temporary Works
Galvanized steel pipes are a popular, cost-effective alternative to heavy I-beams in light structural applications. Structural frameworks like carports, solar racking, and mezzanine supports are some of the common galvanized steel pipe uses.
In temporary works and site fencing, the main advantage of using galvanized pipes is their high reusability. You can easily detach, transport, and reassemble them for long-term use.
Another main advantage of galvanized pipes is that hot-dip galvanization coats both the interior and exterior of the pipe. This prevents internal oxidation in hollow sections where moisture usually gets trapped. Therefore, galvanized pipes can be stored outdoors for years without the need for repainting. This reduces labor costs by approximately 30 – 40% (compared to painted steels)
When procurement is focused on load-bearing safety, always specify ASTM A53 Grade B to ensure the steel meets the required tensile strength for structural stability.
Galvanized Steel Pipe Uses in Agriculture
Agricultural environments are highly corrosive due to high humidity, fertilizers, and animal waste. Using galvanized steel pipes is highly beneficial to withstand these environmental conditions.

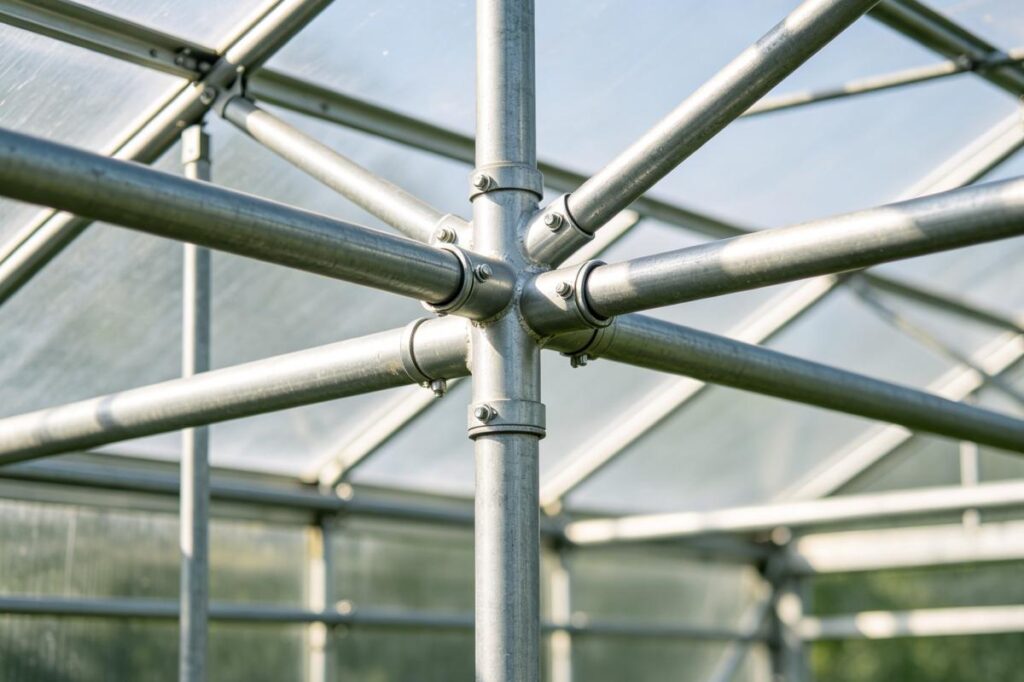

Greenhouse Structures
Greenhouse frames operate in near-constant condensation. Galvanized pipes are preferred because they do not flake or shed rust, unlike untreated steel. This prevents damage to polyethylene films and avoids contamination of crops.
Passivated galvanized tubing is recommended for high-humidity environments to minimize early-stage white rust (zinc).
Fencing Systems
Galvanized pipes are widely used for farm boundaries and perimeter fencing where long-term outdoor exposure is unavoidable. They can last 25 – 40 years in rural environments without major corrosion, compared to the 5 – 15 year service life of untreated wood.
Irrigation Supports
In pivot irrigation and distribution systems, the use of galvanized steel pipes extends to both structural support and water transport. Unlike PVC, galvanized pipes excellently resist UV degradation.
Standard galvanized pipes can usually handle 150 – 300 PSI (10 – 20 bar), which meets the demands of industrial irrigation systems. They show excellent durability values for irrigation applications, including:
- Rural soil (neutral pH 6 – 7.5): 30 – 50 year service life
- Slightly acidic soil (pH 5 – 6): 20 – 30 years
For extended durability, you can choose a heavier galvanized steel grade like G90 (275).
Livestock Facilities
Livestock systems require materials that can handle impact loads with 300 – 500 N of lateral force from animals. They are also continuously exposed to soil contact.
According to industry data, using Schedule 40 galvanized pipe can improve resistance to ground-line corrosion and bending. This ensures higher structural reliability and can extend service life by 2 – 3× compared to timber posts. This reduces maintenance and replacement costs significantly.
Galvanized Steel Pipe Uses in Industrial Projects
In industrial engineering, galvanized steel pipes are critical for mechanical protection and structural support. In galvanized steel, the hardness of the zinc-iron alloy layers is usually harder than the base steel itself. Because of that, galvanized pipes provide exceptional resistance to mechanical wear, vibration, and abrasion.
Equipment Frames

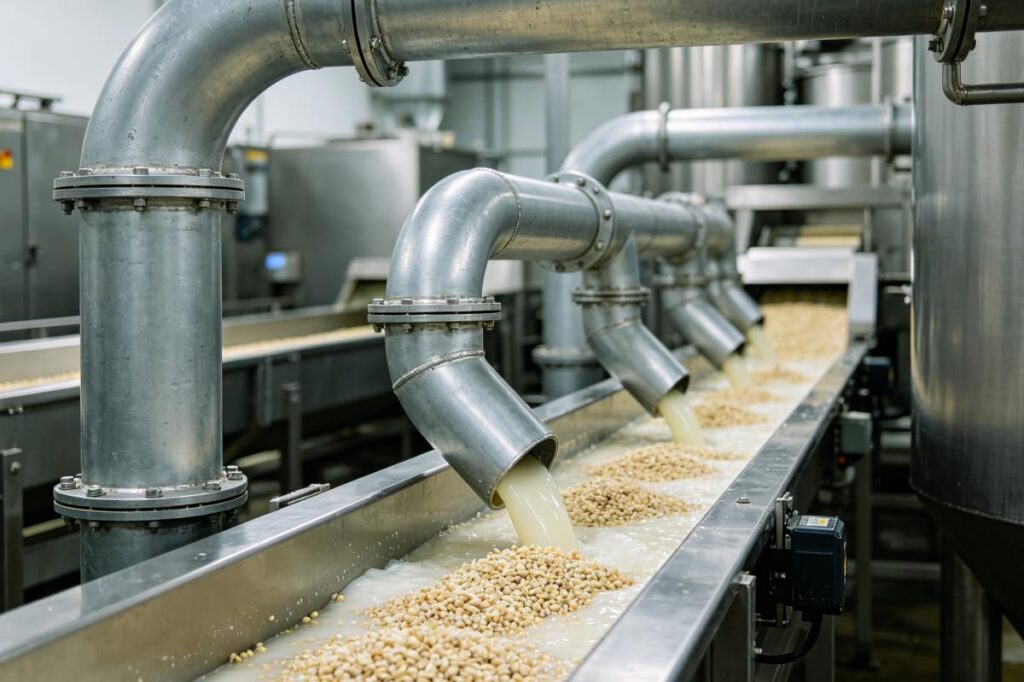

In sectors like food processing and chemical manufacturing, equipment must undergo frequent wash cycles. Therefore, industrial machinery is frequently mounted on galvanized pipe frames or skids to withstand moisture and cleaning agents without the risk of paint chipping.
Storage Systems
Galvanized pipes are a popular choice in unheated warehouses and cold storage facilities. They can resist temperature fluctuations and constant condensation observed in many storage facilities. They maintain structural integrity even in extreme cold (down to −50°C), whereas certain polymers and untreated metals can become brittle.
High-density industrial racking also uses galvanized pipes due to their superior strength-to-weight ratio.
Support Structures
In industrial plants, galvanized pipes are used for support structures, including pipe racks, cable trays, and utility frames. They provide long-term stability under load while resisting moisture and environmental exposure. Their durability reduces maintenance needs and ensures consistent performance in semi-corrosive factory environments.
Mechanical Applications
Galvanized steel pipes are used as protective conduits for electrical and mechanical systems in outdoor or high-risk areas. They can resist physical impacts and abrasion while also offering good fire resistance due to steel’s high melting point (1,370°C). This makes them more reliable than PVC or aluminum in critical safety applications.
Uses of Galvanized Pipe in Water and Utility Systems
In residential interior water systems, you can commonly see synthetic materials like PEX and PVC. That’s because many interior systems don’t demand harsh conditions and rust protection. However, galvanized steel pipes are still essential for municipal, industrial, and high-pressure utility systems. Their ability to withstand external mechanical stress and high internal pressures cannot be met with plastic alternatives.

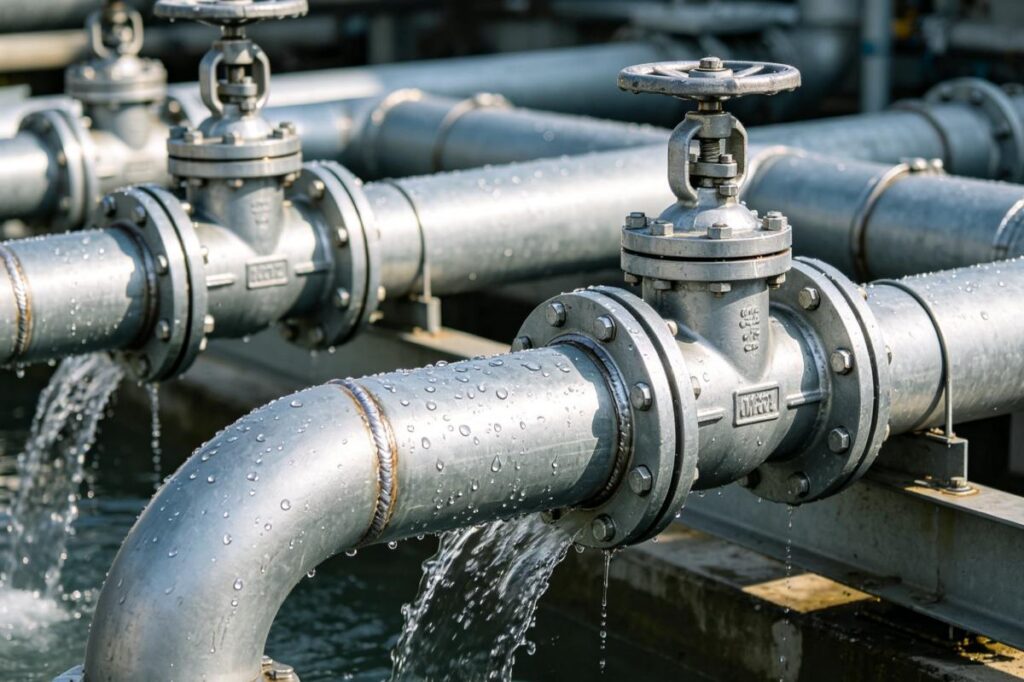

General Water Transport Uses
Galvanized pipes are the industry standard for outdoor main lines and non-potable water systems. They are frequently used for:
- Fire Sprinkler Systems (Dry Pipe) – In unheated warehouses, pipes are filled with pressurized air. Galvanization prevents internal scaling and rust flakes, avoiding blockages in sprinkler heads.
- Irrigation and Agriculture – Used in main lines and pivot systems exposed to sunlight and mechanical impact. Galvanized pipes resist UV and outdoor wear excellently.
- Industrial Cooling – Used to transport non-potable water for cooling towers and heat exchangers.
Suitable Use Conditions for Galvanized Pipes
To maximize the service life of galvanized utility pipes, they should be used in environments with a pH level between 6.5 and 8.5. In these almost neutral conditions, a standard zinc coating can usually last 40 to 70 years.
- Mechanical Stress – They are ideal for areas prone to vibration or physical impact, such as utility lines under roadways or bridge crossings.
- Temperature Stability – PVC loses structural integrity above 60°C. But galvanized steel can handle utility fluids at much higher temperatures without sagging or bursting.
Buying Galvanized Piping for Water Systems: Points to Check
For reliable performance, buyers should focus on the following specification details regarding water and utility systems:
- ASTM A53 Compliance – Ensure the pipe is rated for pressure. Grade B is standard for most utility applications, providing a minimum yield strength of 35,000 psi.
- Internal Coating Quality – For water transport, a uniform galvanized coating on the inside is essential to prevent premature mineral buildup.
- End Connections – Specify whether you require NPT threading, grooved ends (for mechanical couplings), or beveled ends for welding.
- Coating Mass – For buried utilities, a G90 (Z275) coating is the minimum recommended weight to ensure adequate protection against soil chemistry.
What Buyers Should Check Before Ordering Galvanized Pipes
Choosing the right galvanized steel pipe needs a few key checks that can prevent costly failures later.
- Size and Dimensions – Always confirm the outer diameter (OD) and wall thickness (e.g., Schedule 40 or 80). Incorrect sizing can lead to pressure drops, poor structural stability, or compatibility issues during installation.
- Zinc Coating – The coating determines corrosion resistance. For most outdoor or utility applications, G90 is recommended. Lower coatings like G60 may be suitable only for indoor or low-exposure environments.
- Surface Condition – Inspect for a uniform, smooth zinc layer without bare spots, peeling, or excessive roughness. Poor coating quality is one of the main causes of premature corrosion.
- Fabrication Requirements – Decide in advance whether you need threading, grooving, bending, or cutting. Pre-fabricated pipes reduce installation time, labor costs, and on-site errors.
In addition to product specifications, you must also look for supplier reputation, quality standards, and test certificates to confirm the quality of the galvanized pipes you’re sourcing.
- Quantity and Lead Time – For large projects, ensure consistent supply and batch quality. Confirm production capacity, delivery timelines, and stock availability to avoid delays.
- Supplier Quality – Always choose suppliers that comply with recognized standards such as ASTM A53, EN 10255, or ISO 1461 (galvanizing standard).
- Product Quality & Certifications – Check for mill test certificates (MTC), coating inspection reports, and quality control processes to ensure reliability and consistency across batches.
Conclusion
Galvanized steel pipe uses expand across construction, agriculture, industrial, and utility applications as a reliable piping solution. Their ability to combine mechanical strength with long-term corrosion resistance makes them valuable in outdoor and demanding environments. The performance depends heavily on selecting the right specifications, especially the coating thickness, pipe standard, and intended use conditions. By understanding both applications and buying factors, you can ensure maximum service life, reduced maintenance, and better overall project efficiency.
FAQS
What are the uses of galvanized steel pipes?
Galvanized steel pipe uses include scaffolding, railings, fencing, irrigation systems, structural frames, and outdoor water pipelines. It is an ideal choice for piping solutions that demand strength and corrosion resistance.
How long do galvanized steel pipes last?
Galvanized steel pipes last 20 – 50 years in urban environments and over 50 years in rural conditions. This highly depends on coating thickness and exposure. You can contact our experts to know the right spec for your project.
When should you not use galvanized steel pipes?
Galvanized steel pipes should not be used in highly acidic or alkaline environments. The zinc coating can degrade and cause corrosion or scaling in such conditions.
Is shifting from PVC to galvanized steel pipes a good choice?
Shifting from PVC to galvanized steel pipes is beneficial when you need higher strength, impact resistance, and outdoor durability. They perform better under mechanical loads, UV exposure, and high temperatures. However, PVC is more suitable for corrosion-heavy water systems, chemical transport, and low-cost indoor plumbing.
