Galvanized Steel sheet
Galvanized Steel sheet
Galvanized steel sheet, also known as galvanized steel sheet metal, hot dip galvanized steel sheet, and electro galvanized steel sheet, is widely used in roofing, wall cladding, manufacturing, and general construction projects. With excellent weather resistance, self-healing capability, and good workability. We offer galvanized steel sheet in coils and cut-to-size formats, including popular sizes such as galvanized sheet metal 4×8, 4×8 sheet of galvanized metal, and 10 ft galvanized steel corrugated roof panel options.
The main galvanizing methods include:
Hot-dip: Produces a thicker, firmly bonded zinc-iron alloy layer, often with a characteristic spangled appearance.
Electrogalvanized: Features a thinner coating, suitable for applications requiring a smoother surface or further painting.
Galvannealed: Involves post-hot-dip annealing to form a zinc-iron alloy coating with higher hardness, making it well-suited for painting.
Products
Galvanized Steel Sheet Specification
Thickness and coating options include G40–G90, Z275 galvanized steel, and zero spangle galvanized steel for projects requiring improved corrosion resistance
| Item | Specification / Parameter |
|---|---|
| Thickness | 0.3mm – 3.0mm (Common: 1.0mm / 1.5mm / 3.0mm) |
| Width | 600mm – 1500mm |
| Length | 1000mm – 6000mm or customized cutting |
| Standard Sheet Size | 4ft × 8ft (1220mm × 2440mm) |
| Surface Type | Plain, Corrugated, Perforated, Mesh |
| Zinc Coating Type | Hot-dip, Electrogalvanized, Galvannealed |
| Zinc Coating Weight | G30 / G60 / G90 (ASTM)Z100–Z275 (EN 10346) |
| Zinc Layer Thickness | Approx. 5–25μm per side, total 10–50μm |
| Surface Finish | Skin pass, unoiled/lightly oiled, anti-fingerprint |
| Steel Grade | SGCC, DX51D+Z, ASTM A653, S350GD, etc. |
Quality Certification
Galvanized Steel Sheet Uses

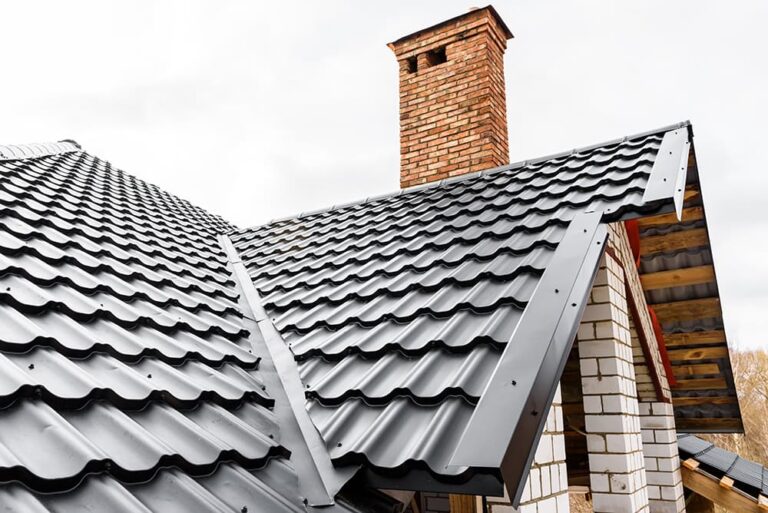

Construction: Galvanized corrugated roofing is one of the most common applications. We supply corrugated galvanized steel roofing sheet, galvanized corrugated metal panels, and galvanized roofing panels for residential, commercial, and industrial buildings.
Automotive: Used for car body panels, chassis parts, and corrosion-resistant components.
Home Appliances: Used for outer shells of refrigerators, washing machines, air conditioners, etc.
Agriculture & Industry: Used for grain storage, equipment enclosures, ventilation ducts, and farm fencing.
Energy & Public Utilities: Used for electrical boxes, cable trays, power towers, solar, and wind power structures.
More Details About Zhaojian Steel Products
Key Features
Smooth Surface
Equipped with automated inspection to ensure a flawless, clean steel surface.
Precise Thickness Control
Strictly controls base material and zinc coating thickness for consistent dimensions.
Premium Packaging
Steel straps with buckles and protective corners provide export-grade protection for safe transport.
Galvanized Sheet Manufacturing Process
- 1.Raw Material Preparation: Cold-rolled or hot-rolled steel coils are selected, leveled, and cleaned to remove grease and surface oxides.
- 2.Surface Treatment: Hot-Dip Galvanizing: After degreasing and acid pickling, the steel passes through a flux solution (e.g., ammonium chloride) to prevent oxidation. Electrogalvanizing: After similar cleaning, the steel enters an electrolytic bath for plating.
- 3.Zinc Coating Process: HDG: Steel is immersed in molten zinc at around 450 °C—a strong, adherent zinc coating forms. Excess zinc is removed with air knives, then the sheet is cooled and solidified.
- 4.Post-Treatment & Inspection: Optional treatments include passivation, light oiling, and anti-fingerprint coating for enhanced corrosion resistance.
FAQ
Depending on the environment and zinc coating thickness, the service life is generally over 20 years, with some high-quality products lasting up to 50 years.
Avoid prolonged water exposure and mechanical damage. Clean the surface regularly, and apply protective coatings or paint when needed.
Generally, our delivery time ranges from 15 to 45 days. For large-volume orders or special requirements, the lead time may be longer.
Pricing depends on coating grade (such as G90 galvanized steel sheet or Z275), thickness, and order volume. We also supply competitive rates for markets searching for galvanized sheet metal prices, galvanized roofing sheets price, and GI sheet price per sq ft.
Yes. We provide galvanized corrugated roofing, galvanized corrugated roof panels, and lightweight GI sheet for roofing suitable for sheds, barns, workshops, and residential buildings.
