Skip to content Choosing the correct type of hollow structural section (HSS) for your project is a critical decision. The choice will directly impact structural load capacity, material weight, and longevity of your structures. Galvanized steel square tubes and rectangular tubes are two of the most dependable profiles in the HSS family. Both come with a protective zinc coating that prevents atmospheric corrosion, but their mechanical performance has several critical differences.
This technical guide provides a head-to-head comparison of galvanized steel square tubes vs. rectangular tubes to help you optimize your structural designs and procurement strategy.
What Is the Difference Between a Square and Rectangular Tube?
The main difference comes from their cross-sectional geometry. Square and rectangular profiles show a significant variation in their Moment of Inertia (I) and Radius of Gyration (r). These properties decide exactly how the steel tube resists deformation, bending, and twisting under stress.
Cross-Section Shape: Square vs. Rectangular Profile
Square tubes show biaxial symmetry with equal width and height (B = H). The material is distributed symmetrically around the center.
Rectangular tubes have unequal dimensions (B≠H). Because of this, a rectangular tube has a major axis (strong axis) and a minor axis (weak axis).
Load Characteristics Comparison
Because of the symmetry, square tubes provide equal strength distribution in all directions. But in a rectangular tube, structural properties along the major axis are significantly higher than along the minor axis. Therefore, rectangular tubes can handle higher forces in one specific direction.
The performance of the galvanized square tube vs. rectangular tube can be analysed under a few critical load conditions:
- Bending Rigidity – Rectangular tubes are better for handling predictable, unidirectional forces. By orienting the longer side vertically, you can prevent downward deflection far better than a square tube of equivalent weight. Square tubes are better for multi-directional or unpredictable bending forces.
- Torsional Rigidity – Square tubes provide superior resistance to twisting (torsion) compared to rectangular tubes. Because of the uniform wall distance from the geometric center, they distribute shear stresses evenly. Rectangular tubes can experience uneven stress concentrations under high torsional rotation.
- Axial Compression (Buckling) – A profile will always fail along its weakest axis when used as a column. Therefore, rectangular tubes are more prone to buckling due to the limited load capacity of their minor axes. Square tubes are much more efficient for vertical compression columns.
Installation Differences of Square vs. Rectangular Tubes
Square tubes can be easily installed in any orientation due to their symmetry. But rectangular tubes need strict attention during assembly. Their major and minor axes should be properly aligned to prevent structural failure.

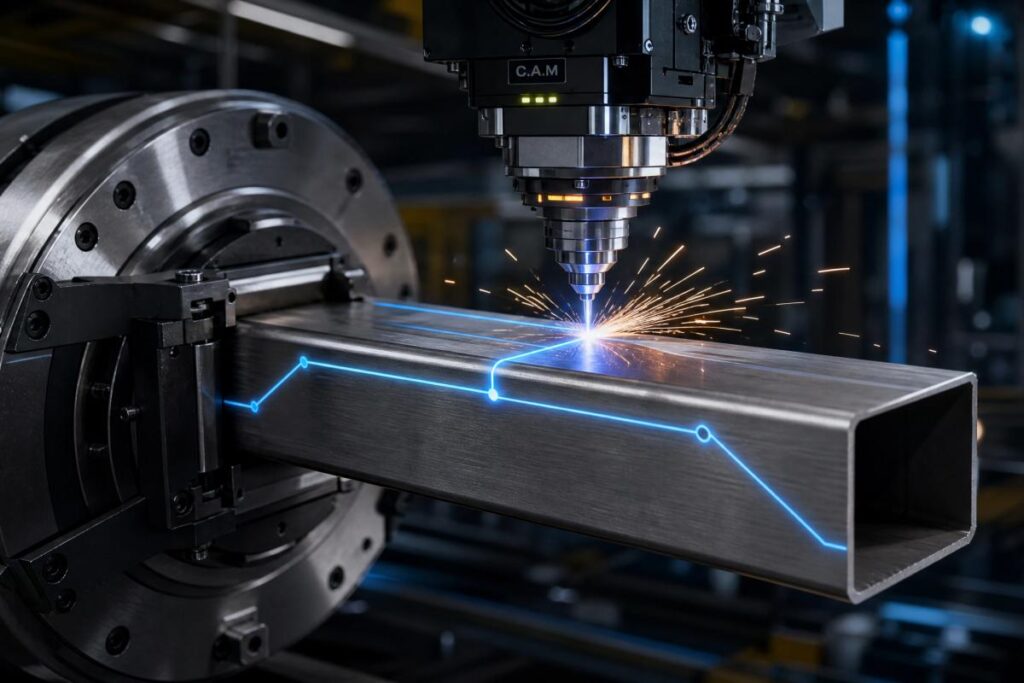

Specifically, square tubes provide highly predictable indexing for automated 5-axis CNC laser cutting and welding jigs. But rectangular tubes need frequent programming adjustments due to their changing aspect ratios during rotation. So, costs can be higher for the fabrication and installation of rectangular tubes.
Appearance and Structural Design Considerations
In addition to mechanics, the aesthetic and physical layout of square vs. rectangular tubes are major selection criterion.
Visual Consistency: Why Square Tubes are Better?
Square tubes create clean, symmetrical lines. They provide a balanced geometric appearance from every viewing angle. Therefore, square tubes are highly favored for modern architectural framing, interior fixtures, and visible consumer goods. Rectangular tubes are ideal for creating long, sleek profiles. With rectangular tubing, you can maintain a thin horizontal profile while also achieving high vertical strength.
Design Flexibility: Why Choose Rectangular Tubes?
Rectangular tubing gives you greater flexibility in adjusting proportions. This is highly beneficial if you need a lower visual profile while also maintaining strength. For instance, rectangular tubes can accommodate the limited space available in low-clearance ceiling grids while still meeting the required strength.
Ease of Connection: Square vs. Rectangular Profile
Both products are relatively easy to weld, cut, drill, and fabricate compared to round and complex sections. But square tubing gives you an added advantage in creating symmetrical assemblies. Rectangular tubing generally needs more careful positioning to align the axes.

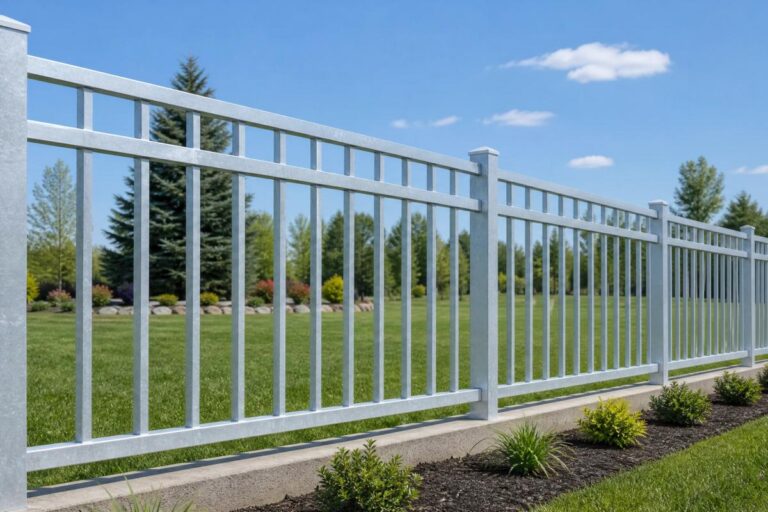

Which One is Better for Fencing and Frames
Both square and rectangular tubing are popular for fencing and frame construction. But their structural and aesthetic roles usually differ from each other.
When Square Tube Works Better
Square tubes are better in a few main aspects: handling multi-directional forces, balancing rotation, and giving a richer appearance. These properties make square tubing the better choice for many fencing applications.
When Rectangular Tube Works Better
Rectangular tubing performs best when horizontal members carry loads over longer distances. If you are building a wide sliding gate, use rectangular tubes horizontally. This helps minimize sagging and prevent unnecessary weight on the system. Common fencing-related applications of rectangular tubing include:
- Gate and roof frames – support unidirectional loads and provide better resistance to sagging across wide spans.
- Trailer chassis – provide high strength-to-weight performance.
- Industrial platforms – Handles concentrated loads effectively.
- Structural bracing – improves rigidity in load-bearing frameworks.
With rectangular hollow sections, you can increase the strength by extending only the major axis. Therefore, they can resist bending more efficiently than square tubing of similar weight.
Which One is Better for Support Structures
Galvanized steel tubing currently has a very high demand for support structures, even more than fencing or decorative applications. To choose between the galvanized steel square tube vs. rectangular tube, the following criteria should be mainly considered:
Direction of the Load
If your support structures face clear, single-direction loads, rectangular tubing is superior. If the structure is an outdoor vertical pillar supporting a platform, square tubing is the correct choice to prevent buckling.
Span Requirements
If your designs include long, unsupported spans, choose rectangular sections. They give you the flexibility to increase the length of one axis to match your load requirements and reduce mid-span deflection. If you use a square tube instead, it would be excessively large and heavy due to the unnecessary length of the other axis.
Cost and Material Efficiency of Square vs. Rectangular Tubes
The first step in reducing cost and improving material efficiency is choosing the correct profile. This will cut down many unnecessary costs at different stages, such as material costs, freight expenses, installation costs, and maintenance needs.
Material Cost & Efficiency: Galvanized Square vs. Rectangular Tubes
Steel is priced largely by weight. If you fail to choose the right profile, you will have to achieve the strength requirements by using thicker walls or unnecessarily large dimensions. This results in wasted material and structural dead load on your foundation.
Fabrication Cost Comparison
Square tubes are easier to weld and cut in high-volume production runs due to their symmetry. Contractors may complete fabrication faster, especially for repetitive frame structures.
Rectangular tubing requires more careful orientation and layout planning. But these additional efforts are usually offset by improved structural efficiency and durability. Rectangular tubes also indirectly reduce costs by minimizing the need for intermediate vertical support pillars.
Buying Advice for a Smart Purchase
When purchasing galvanized steel tubing:
- Always check the Mill Test Reports (MTRs). These reports provide proof that the products meet structural standards like ASTM A500 Grade B/C or EN 10219.
- For outdoor infrastructure, choose Hot-Dip Galvanizing (HDG) post-fabrication over pre-galvanizing. HDG gives better corrosion protection for welds and cut edges. This significantly reduces maintenance and repair costs.
- Select the appropriate zinc coating grade for your environment (G60, G90, or higher). Higher coating thicknesses provide longer service life in outdoor and industrial environments.
- Check whether the product tolerances match with your design requirements.
A high-quality galvanized square tube or rectangular tube will give you better long-term value than a lower-priced alternative.
How to Select the Right Tube for Your Application
The best choice depends on your exact requirements. However, you must always evaluate the following factors before placing the order.
Choosing the Profile: Galvanized Square Tube vs. Rectangular Tube
First, identify the primary forces acting on the steel tube. Then, determine the suitable profile by comparing galvanized square vs. rectangular tubes.
Property | Galvanized Square Tube | Galvanized Rectangular Tube |
Strength in multiple directions | Excellent | Moderate |
Directional bending strength | Moderate | Excellent |
Torsional resistance | Better | Lower |
Load distribution symmetry | Excellent | Moderate |
Long-span performance | Good | Better |
Matching the Budget
Optimize the weight-to-strength ratio of the selected tube. Use rectangular tubes for beams to cut off unnecessary steel weight. This will lower your total bill of materials.
Choosing a Reliable Supplier
Square structural tubes are globally standardized. But choosing a reputed supplier is still critical for:
- Achieving quality standards consistently
- Smooth and safe transport and delivery
- Meeting customizing requirements and consistent supply
- After service maintenance, repair, and replacement support
If your project demands uncommon dimensional aspect ratios in rectangular tubing, always check mill availability and lead times.
Conclusion
The galvanized steel square tube vs. rectangular tube comparison always begins with understanding your load path. Square tubes provide excellent biaxial stability, and rectangular tubes allow you to engineer long-span systems. Choosing the right galvanized coating grade is the next critical stage. The right coating will protect your system and facilitate a flawless performance over the lifespan. In addition to structural needs, you should also evaluate fabrication needs, dimensions, and long-term project costs when purchasing steel tubes. The process is completed by choosing a reliable and high-quality supplier who is able to bring your exact needs into reality.
