The main purpose of using coated-steel products such as PPGI and PPGL is to provide better corrosion protection and a clean appearance. To achieve them, the surface quality of the coating system must be of the highest standards. However, pre-painted steel surface defects are a main reason that reduces product quality and durability. A few of such common issues are pinholes, scratches, orange peel texture, and uneven paint coverage.
Coating defects mainly occur during the coating process. But certain defects can appear while in service too. Therefore, you must understand and know how to choose quality painted steel and prevent defects.
What is a Surface Defect in Pre-Painted Steel?
A surface defect in pre-painted steel is any imperfection that appears on the paint coating after the coating process. These defects affect the smoothness, uniformity, or adhesion of the paint layer.
When the coating layer is not applied or cured correctly, surface irregularities can develop. Surface defects can reduce both protective performance and visual appeal. In some cases, they can also shorten the service life of the coated steel.
Types of Common Coating Defects and Causes
Most of the coating defects occur during the coating process and become worse during use. But some can also develop during handling, storage, transport, installation, or service use. You can classify these defects into two categories, such as:
- Manufacturing defects: pinholes, orange peel, uneven coating, color variation, poor curing issues
- Use-related defects: scratches, dents, coating damage, fading, chalking, corrosion from damaged paint, staining
Out of them, a few critical painted steel coating defects are explained below in detail.

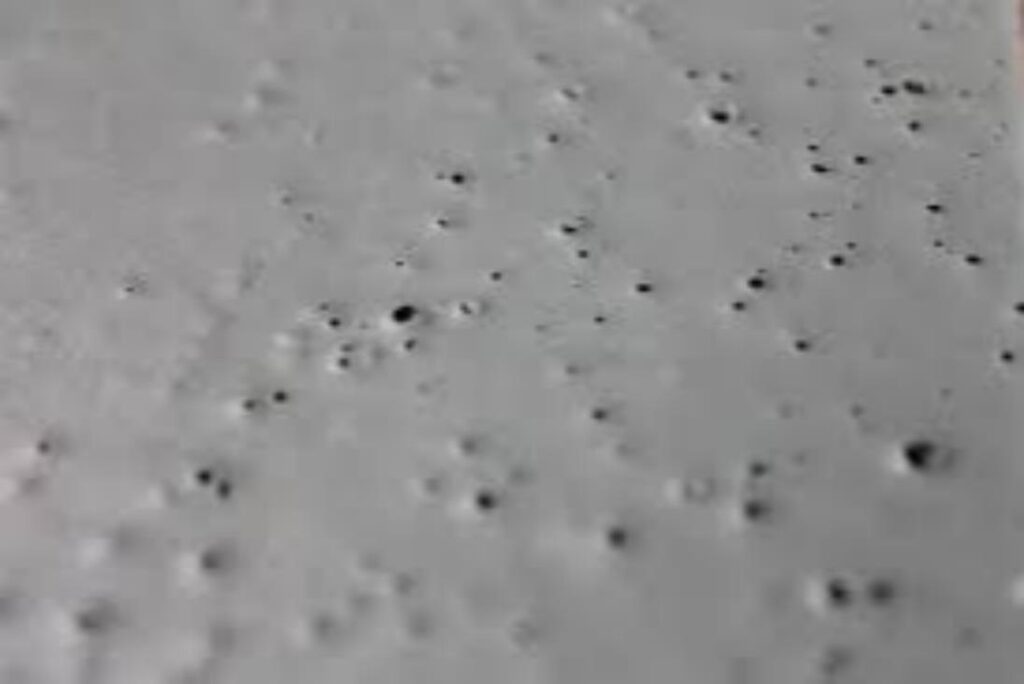

Pinholes in Pre-Painted Steel Coatings
Pinholes are tiny holes that appear in the paint layer. You can observe them as small dark dots on the surface. When the pinholes are present, moisture can penetrate through the coating and reach the steel substrate. These act as initiation sites for localized corrosion.
Common causes for pinholes are trapped air, contamination, or improper curing conditions.

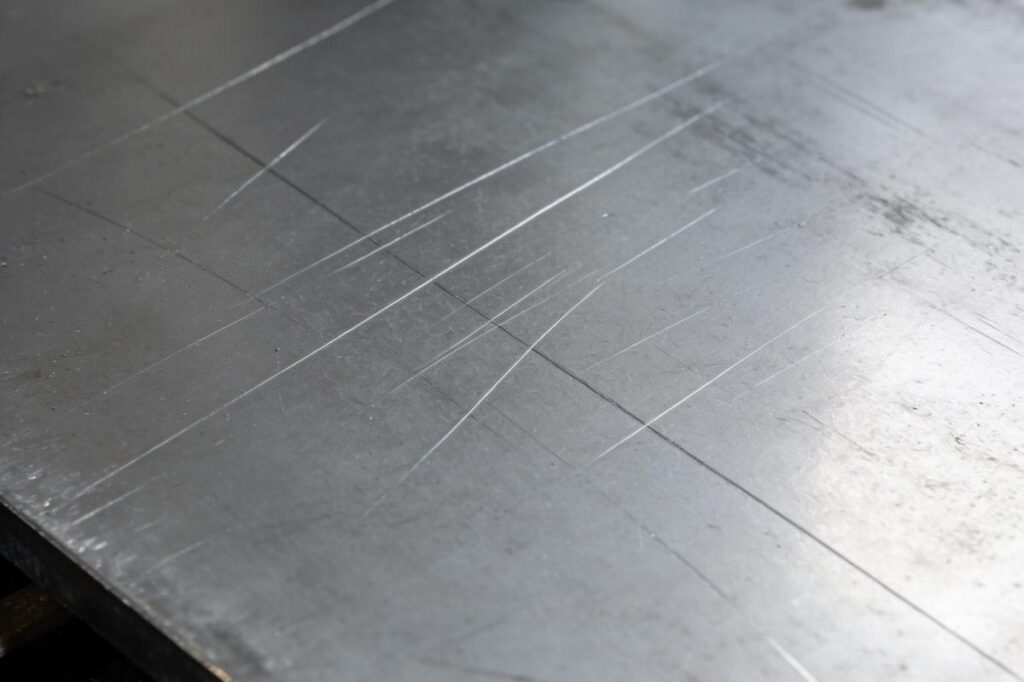

Scratches and Surface Damage
Scratches are one of the most common pre-painted steel defects during handling and transportation. These defects occur when the coated surface comes into contact with rough materials or sharp objects.
Thin scratches can reduce the durability and integrity of the coating. However, deep scratches mostly expose the metal surface and drastically reduce corrosion resistance.
You can significantly minimize scratching risk by using proper packaging and protective films.

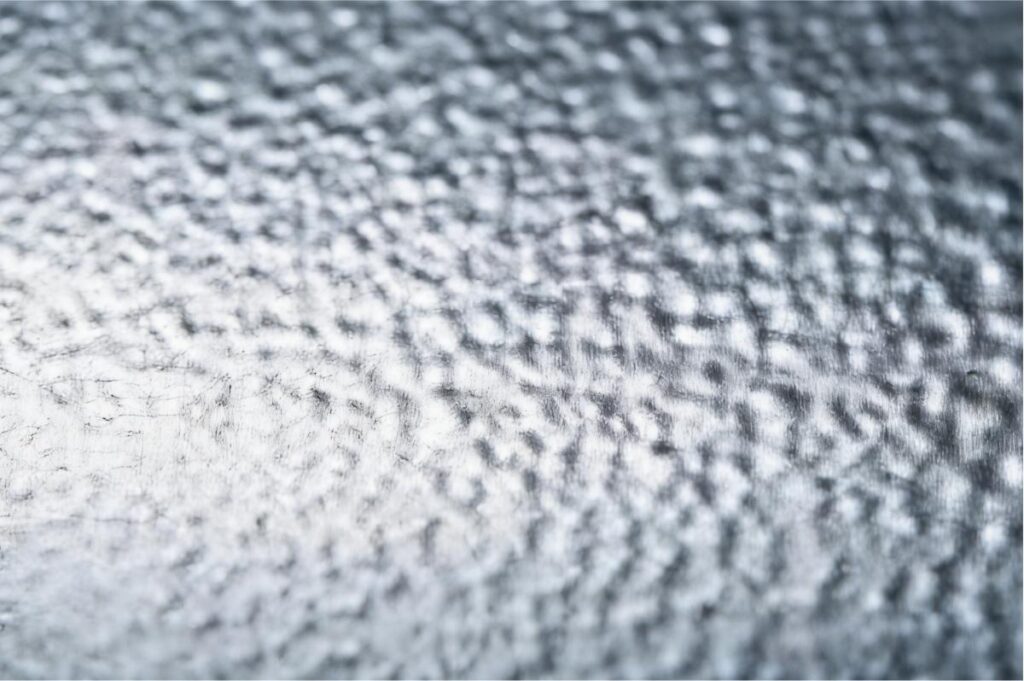

Orange Peel Texture in Steel Coatings
Orange peel is a rough surface texture that resembles the skin of an orange. This defect occurs when the paint does not flow evenly before curing. As a result, the coating comes as a textured surface instead of a smooth finish.
Orange peels occur due to poor parameter control during the coating process. The main reasons are incorrect paint viscosity, improper spray settings, or poor curing conditions. Preventing orange peel defects is solely in the manufacturer’s hands.
Color Variation Between Steel Coils
Color variation is another common pre-painted steel problem. Different coils or batches may show slight differences in shade, gloss, or brightness. This becomes noticeable when panels from different coils are installed together.
That’s why modern manufacturers use automated continuous coating processes. With continuous processes, we can maintain consistent pigment mixing, uniform coating thickness, and stable curing temperatures. You cannot practically obtain zero color variation. But with these measures, you can reduce it to a good extent.
Uneven Steel Paint Coverage
Uneven steel paint coverage occurs when the coating thickness varies across the surface. Thin coating areas provide less protection against corrosion. Thick areas may cause surface irregularities or paint cracking. Proper coating thickness control is important to ensure consistent protection.
Other Minor Pre-Painted Steel Issues
Some of the other possible surface defects are:
- Paint blisters
- Poor adhesion
- Surface contamination marks
- Coating streaks
Most of these minor defects are only cosmetic. But certain issues, such as poor adhesion, can affect the long-term performance of the coating.
Causes for Coating Defects
Most painting defects in steel originate from problems during the coating process. Identifying these causes helps manufacturers improve quality control.
Poor Surface Cleaning Before Coating
Surface preparation is the first step in the coil coating process. If oil, dust, or mill scale remains on the steel surface, the paint cannot bond properly. This leads to adhesion problems and coating defects. Modern coating lines use chemical cleaning and pretreatment systems to remove contaminants.
Uneven Paint Application
Paint must be applied in a uniform layer across the steel strip. If the coating rollers or spray systems are not calibrated correctly, the result may be uneven steel paint coverage. This can cause visible surface irregularities and inconsistent protection.
Improper Curing Temperature
After the paint application, the coating must be cured in an oven. If curing temperatures are too low, the paint may remain soft and weak. If temperatures are too high, the coating may become brittle or discolored. Precise temperature control is essential for consistent coating performance.
Contamination During Coil Coating
Dust particles, oil droplets, or airborne contaminants can settle on the wet paint surface. These particles create small bumps or defects in the final coating layer. Modern coating lines use controlled environments to reduce contamination risks.
Low-Quality Raw Materials
The quality of paint, pigments, and steel substrates also affects the coating performance of pre-painted steels. Low-quality materials lead to problems such as fading, poor adhesion, or inconsistent color. Reliable suppliers use certified raw materials and standardized formulations.
How Manufacturers Prevent These Issues
Modern steel manufacturers use advanced production systems to minimize coating defects.
Automated Continuous Coil Coating Lines
Automated coil coating lines apply paint to steel strips in a continuous process. These systems can provide consistent coating thickness, uniform paint distribution, and stable processing conditions. Automation significantly reduces the risk of human error.
Coating Thickness Control Systems
Precise thickness control is critical for maintaining coating quality. Advanced coating lines use sensors and other systems to monitor paint thickness in real time. If deviations occur, the system automatically adjusts the coating process.
Inline Quality Inspection
Many manufacturers install inspection systems directly on the production line. These systems detect pre-painted steel defects such as scratches, pinholes, or color variation before the product leaves the factory.
Strict Process Control and Maintenance
Regular equipment maintenance and process monitoring are also important. It helps maintain coating quality consistently. Therefore, manufacturers continuously monitor variables such as:
- Coating speed
- Paint viscosity
- Curing temperature
- Environmental cleanliness
A Summary of Coating Defects, Causes, and Preventive Measures
Defect Type | Main Cause | How to Prevent |
Pinholes | Trapped air, contamination, improper curing conditions | Surface cleaning, proper parameter and curing temperature control |
Scratches / Surface Damage | Rough handling, contact with sharp objects, poor packaging | Using protective films and safe packaging, careful handling during transport and installation |
Orange Peel Texture | High paint viscosity, uneven paint flow, improper curing | Proper process control, optimizing curing temperatures |
Color Variation | Inconsistent pigment mixing, uneven coating thickness, curing temperature fluctuations | Using automated and continuous coating processes |
Uneven Paint Coverage | Poor coating application, incorrect roller settings | Calibrating coating equipment, monitoring coating thickness |
Paint Blisters | Moisture or trapped gases under the coating | Proper surface preparation, proper curing |
Poor Adhesion | Inadequate surface cleaning, weak pretreatment layer | Applying proper chemical pretreatment before coating |
Contamination Marks | Dust, oil droplets, or particles on wet paint | Maintaining clean tools and production conditions |
Coating Streaks | Irregular paint flow or equipment misalignment | Maintain coating equipment, uniform paint application |
How to Identify Quality Pre-Painted Steel?
As buyers, you must also understand how to check the coated steel quality. Proper knowledge and inspection can help detect pre-painted steel issues before using for production.
Visual Inspection
You should start by visually inspecting the steel coil surface. Defects like scratches, color variations, pinholes, and uneven coating can be easily identified through careful observation. A high-quality surface should appear smooth and consistent.
Checking Paint Adhesion and Coverage
You can perform standard adhesion tests to evaluate coating performance on prepainted steel. A few common test methods are:
- Cross-hatch adhesion test (ASTM D3359 / ISO 2409) – A grid pattern is cut into the coating, and adhesive tape is applied. The tape is removed after some time to check whether the paint peels off.
- Pull-off adhesion test (ASTM D4541) – A metal dolly is glued to the coating and pulled using a testing device. This measures the adhesion strength.
- T-bend test for PPGI and PPGL (EN 13523-7) – Here, coated steel is bent to a specific radius to check whether the coating cracks or delaminates.
These tests help to check that the coating remains firmly attached to the steel. You can also identify the risks of peeling or cracking with the above tests.
Verifying Coating Thickness and Standards
Coating thickness is an important indicator of quality. You can check and verify the coating thickness according to international standards such as ASTM or ISO. You can also request inspection reports or quality certificates to verify compliance.
Working With Reliable Pre-Painted Steel Suppliers
The best way to avoid pre-painted steel defects is to work with reputable manufacturers. Reliable suppliers follow strict quality control procedures and provide full documentation for their products. You can check their certifications, compliances, and reviews of previous buyers before choosing.
