PPGI coils have become an important material in modern industries due to their durability, clean finish, strength, and long-lasting protection against rust. China leads the global supply with over 1,200 shipments exported worldwide. In this article, we discuss what PPGI coils are, how they are made, their properties, where they are used, and how they compare to similar materials.
What Are PPGI Coils?
PPGI coils, which stand for Pre-Painted Galvanized Steel coils, are steel sheets that are already painted and ready to use. They have a zinc layer under the paint, which then helps protect the steel from rust and damage caused by weather or moisture. These coils are useful in places where both strength and color are needed.
PPGI coils are available in many colors, sizes, and thicknesses. They are used in making roofs, wall panels, home appliances, and some types of furniture. Since the painting is already done at the factory, there is no need to paint them again during installation. This helps save time, effort, and cost at construction or production sites.
Processes and Their Impact on Performance

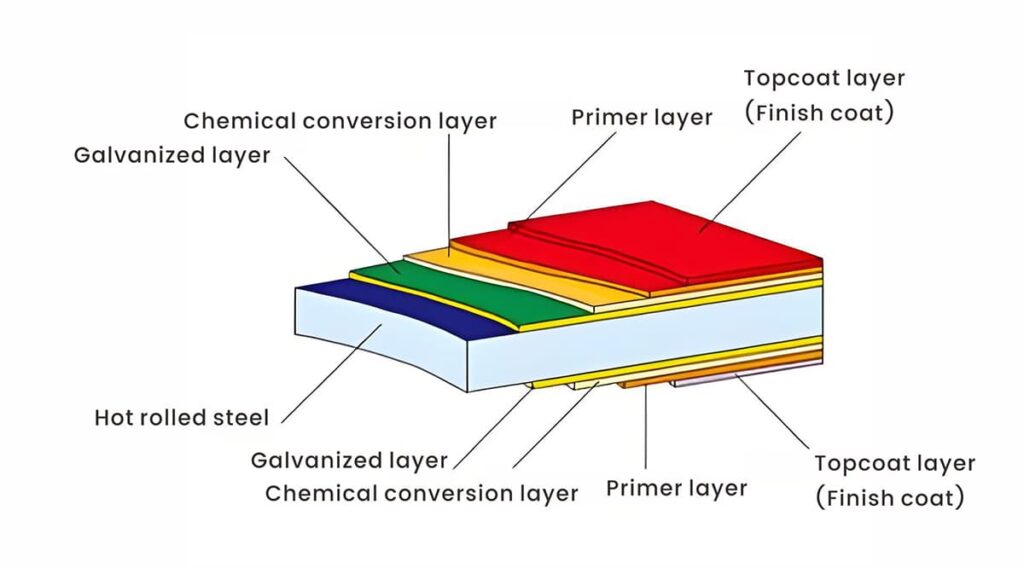

The performance of PPGI coils depends a lot on how they are made. First, the steel sheet is coated with zinc to protect it from rust. Then, it goes through a cleaning and chemical treatment process to help the paint stick better.
After that, several layers of paint and coatings are applied using a continuous painting line. Each layer is dried and cured at high temperatures to make sure it stays strong and smooth.
Impact on Performance
These steps of the process make the coil last longer, resist any potential scratches, and keep its color even in harsh conditions. If any part of the process is not done properly, like poor cleaning or low-quality paint, it can lead to peeling, rusting, or even fading.
That is why manufacturers follow strict quality checks during each stage. The better the process is, the better the coil will perform, whether used on a roof, wall, or in a household appliance.
Specifications and Industry Standards
PPGI coils are made with specific features to fit different needs. These include the thickness of the steel (usually between 0.2 mm and 1.2 mm), the width of the coil, the type of paint, and the paint thickness on both sides.
Zinc coating weight is also important; it normally ranges from 30 g/m² to 275 g/m², depending on how much rust protection is needed. The color, gloss level, and finish are chosen based on where the coils will be used.
What the Standards Cover
International standards like ASTM A755 (USA), JIS G3312 (Japan), and EN 10169 (Europe) help make sure these coils are strong and trustworthy. These standards test color retention, gloss level, paint sticking strength, rust resistance, bending ability, and protection from scratches or peeling.
They also make sure the coils can handle sunlight, rain, and chemicals without losing their quality. Buyers can also trust that the PPGI coils perform well when used in buildings and other industrial settings with these standards.
Properties and Advantages of PPGI Coils
PPGI coils have many helpful features that make them useful in different areas, like construction and appliances. They are light in weight, easy to carry, and can be shaped or cut without much effort. The zinc coating is what keeps protecting the steel from rust, and the paint adds extra safety along with a neat look. This helps the coils last longer, even in rain, sun, or tough weather.
Ready to Use and Cost Saving
One big advantage is that PPGI coils are already painted when they arrive. This means no extra work is needed to paint them at the site. It saves both time and labor costs. Since they are clean and ready to install, the work also becomes faster and more organized.
Strong and Long-Lasting
PPGI coils can resist sunlight, heat, and some chemicals, depending on the type of paint used. They also do not easily get scratched. Because of these features, they are a trusted choice for outdoor use, like roofs and walls.
Applications of PPGI Coils
PPGI coils are used in many industries because they are strong, easy to work with, and already painted. One of the most common uses is in roofing and wall panels for houses, factories, and warehouses. The coils are also used in ceiling panels, fencing, and gates because they can handle weather changes without getting damaged.
Appliance Industry Uses
In the appliance industry, PPGI coils are used to make the outer bodies of refrigerators, washing machines, and ovens. They give a clean look and also protect the metal from rust. These coils are also used in furniture, such as storage cabinets, desks, and shelves.
Other uses include signboards, rolling shutters, garage doors, and road safety items. Since the coils come in many colors and sizes, they are useful in both practical and decorative ways. Their ready-to-use nature and long life make them a good choice in many fields.
Differences Between PPGI, PPGL, and GI
While PPGI coils are widely used, it’s important to understand how they differ from PPGL and GI, as all three are common in construction and manufacturing. For a detailed comparison, see our guide on PPGI vs PPGL.
GI (Galvanized Iron) is plain steel coated with a layer of zinc, which acts to protect it from rust. It has no paint and is usually used in areas where appearance is not a major concern, but basic rust protection is needed.
PPGI (Pre-Painted Galvanized Iron) is GI steel that is painted in different colors. It offers both protection and a clean look, making it useful for visible applications like roofs, walls, and appliances.
PPGL (Pre-Painted Galvalume Iron) is similar to PPGI but has a zinc-aluminum-silicon coating instead of pure zinc. This is what makes it more resistant to heat and corrosion, especially in coastal or high-moisture areas.
Conclusion
PPGI coils continue to be a top choice for builders and manufacturers because they offer both protection and a neat finish in one product. Their painted surface not only adds color but also helps the steel last longer in different weather conditions.
These coils are available in many colors, sizes, and coatings, so they can fit different needs. If you want good-quality PPGI coils, ZhaojianSteel is a great option that you can trust.
