Skip to content Galvanized steel pipes, also known as Galvanized Iron (GI) pipes, are the industrial arteries of modern fluid and gas transportation systems. With their protective zinc coating, they bring far better corrosion resistance and extended service life than untreated steel. Galvanized pipes find wide applications in transporting high-pressure fluids while protecting underground utilities from soil stress and corrosion.
Galvanized pipes generally outperform materials such as PVC and untreated steel in demanding conditions. On the other hand, they are more cost-effective than expensive copper plumbing, acting as a strong middle ground option. However, the right piping material for your project still depends on the exact performance requirements and budget.
In this article, you will gain direct insights into the types of galvanized piping, ASTM specifications, coating durability, advantages, and selection guidelines.
What Is a Galvanized Steel Pipe?
To understand how galvanized steel pipes perform, it is important to look at the role of the zinc coating and how it is applied. This is the base behind all the performance strengths and functionalities of galvanized steel pipes.

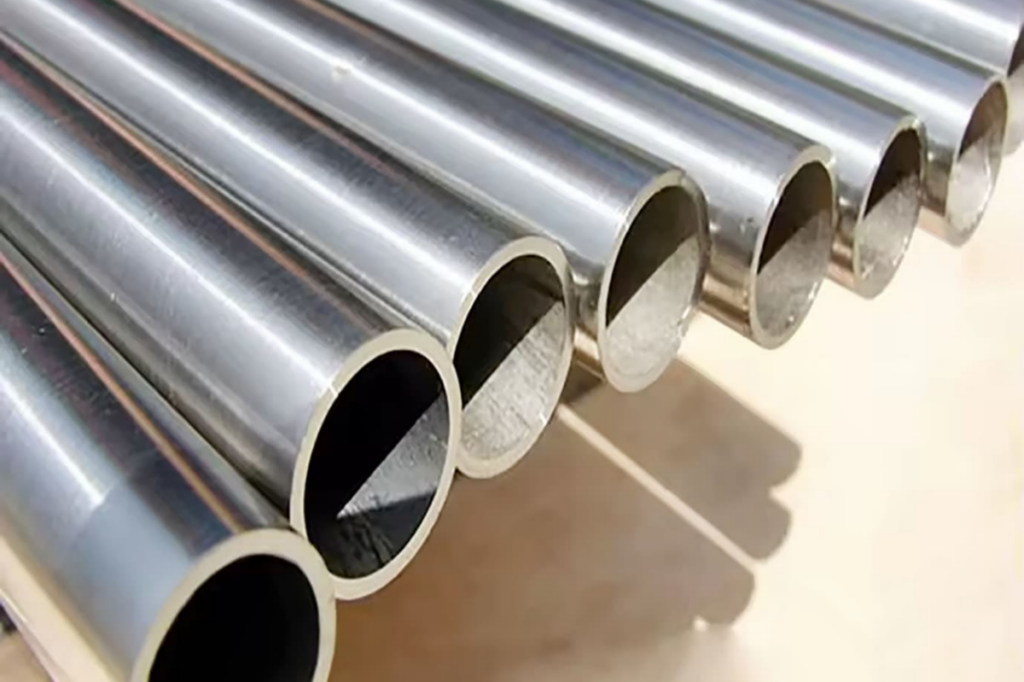

Definition of Galvanized Steel Pipe
A galvanized steel pipe is a carbon steel pipe coated with a protective layer of zinc using a specific galvanizing process. This zinc layer acts as both a physical barrier and a sacrificial coating against corrosion.
Unlike a standard painted pipe, galvanizing creates a series of strong zinc-iron alloy layers that become a part of the steel itself. Therefore, the zinc protection does not peel under high pressure or physical impact.
Why Steel Pipe Is Galvanized
The main reason for galvanizing is to prevent oxidation. Untreated carbon steel reacts quickly with moisture and oxygen, forming rust. That’s why they are prone to pinhole leaks and structural collapse, especially when transporting water or acidic fluids. By galvanizing, you can extend the lifespan of the steel pipe up to several decades.
Environment | Normal Steel Pipe | Galvanized Steel Pipe |
Indoor & Dry | 5-10 years (surface rust develops) | 50 – 70+ years |
Outdoor & Rural | 2-5 years (pitting occurs quickly) | 30 – 50 years |
Coastal & Marine | < 2 years (rapid corrosion failure) | 10 – 20 years |
Underground | 1-3 years (depends on soil pH) | 15 – 30 years |
How Zinc Coating Helps Protect the Steel
Zinc protects the steel through two methods:
- Physical Shielding – the zinc layer creates an impermeable barrier for water and corrosive chemicals to reach the steel core.
- Sacrificial Protection – because zinc is more chemically active than iron, it corrodes before steel.
Zinc also gives a self-healing effect for steel. With that, even if the zinc coating is damaged, the surrounding zinc can still protect the steel. This is why choosing galvanized pipe for water and outdoor use is highly popular in modern systems.
Main Types of Galvanized Steel Pipe
Based on the manufacturing method, there are different types of galvanized steel pipes with different performance levels. Choosing the right type depends on the service environment, cost, and durability expectations.
Hot-Dip Galvanized (HDG) Steel Pipe
Hot-dip galvanized steel pipe is produced by immersing the pipe in molten zinc at temperatures of approximately 445 – 465 °C. This process forms a metallurgical bond between zinc and steel, forming a thick and durable coating.
Because the entire pipe is dipped after fabrication, both the internal and external surfaces receive a thick, rugged coating. Achievable coating weights from this method range from Z275 (275 g/m²) to Z600+, depending on application requirements.

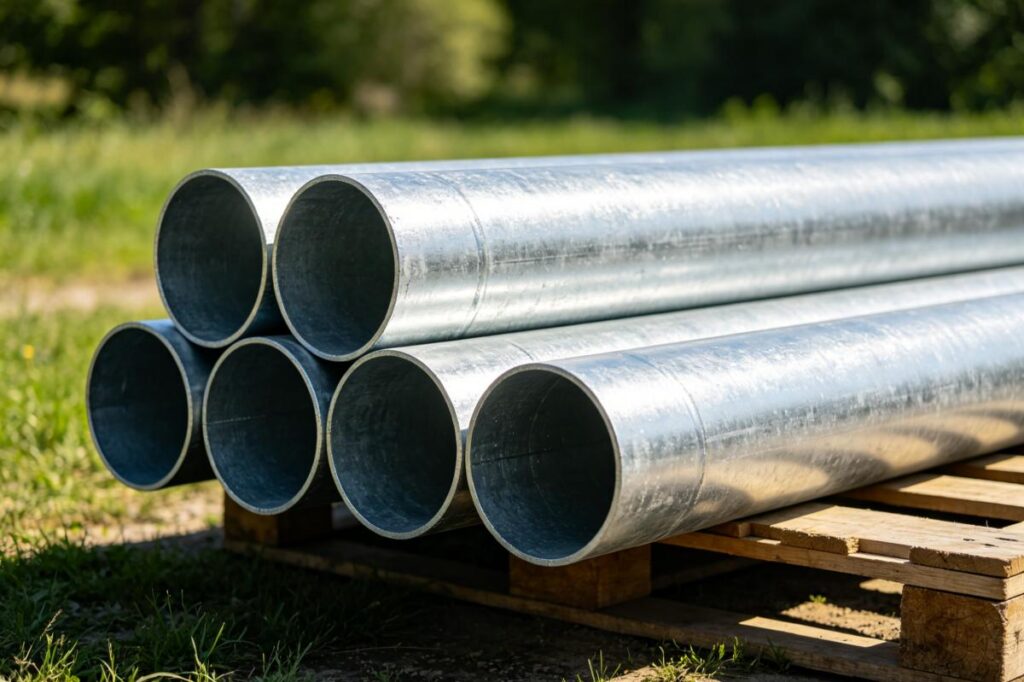

Hot-dip galvanized pipe is the industry standard for outdoor infrastructure and high-corrosion zones where long-term durability is critical.
Pre-Galvanized Steel Pipe
Pre-galvanized pipe is manufactured from steel coils that are zinc-coated in a continuous process before being rolled and welded into a pipe. The coating thickness is usually in the Z80 – Z120 range.
Pre-galvanized steel pipes usually come with a very smooth and aesthetically clean finish. However, the welding process burns the zinc layer along the longitudinal seam, making those areas more vulnerable to rust on galvanized steel. To minimize this effect, manufacturers use metallizing equipment to spray a fresh layer of zinc onto the weld.
Pre-galvanized steel pipes are better suited for indoor frames, EMT conduit, and light-duty fencing.
Galvanized Seamless Pipe
Galvanized seamless pipe is manufactured without a welded joint, using hot rolling or cold drawing processes. After forming, the pipe is galvanized to improve corrosion resistance.
Since they do not have a weld seam, seamless pipes allow higher pressure ratings and improved structural integrity. These are an excellent choice for high-pressure systems, oil and gas applications, and mechanical equipment.

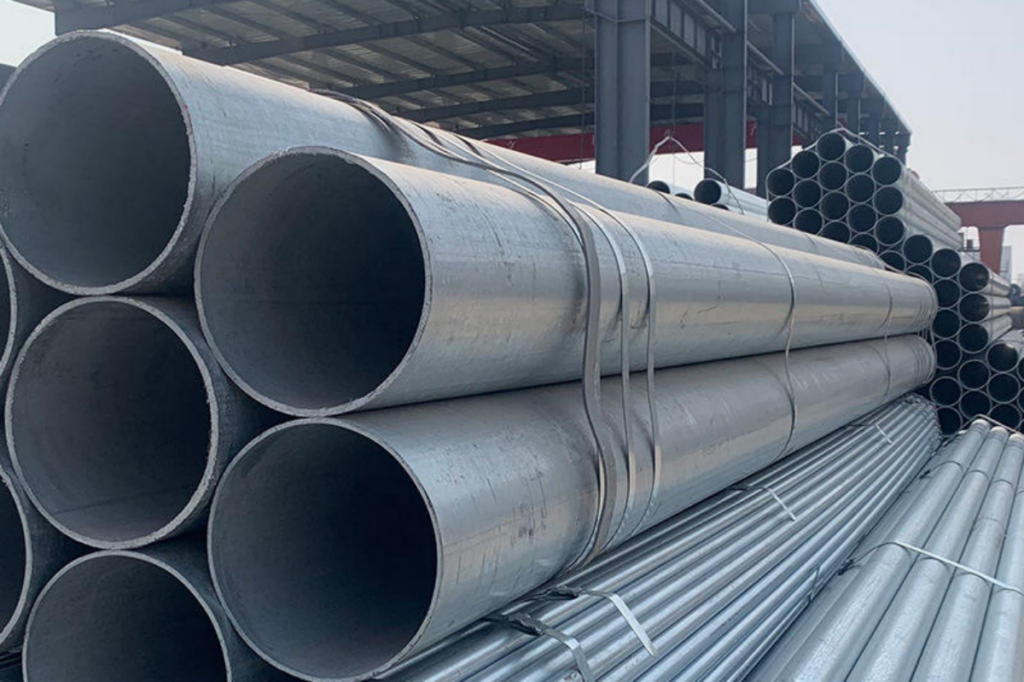

Galvanized Welded Pipe (ERW Pipe)
Galvanized welded pipe is produced using Electric Resistance Welding (ERW). Here, steel strips are formed into a pipe and welded along the seam. The pipe is then galvanized either before or after welding, depending on the process.
These pipes offer a good balance between performance and cost. They are suitable for construction, general piping systems, and infrastructure projects. However, ERW pipes are not recommended for high-pressure conditions due to the weld layer.
Comparison of Different Types of Galvanized Steel Pipes
Pipe Type | Achievable Coating Thickness (µm) | Coating Weight (g/m²) | Durability | Best Environment |
Hot-Dip (HDG) | 55 – 85+ µm | Z180 – Z275+ | Very High | Outdoor / Coastal / Industrial |
Pre-Galvanized | 15 – 25 µm | Z80 – Z120 | Moderate | Indoor / Light Structural |
Seamless (Galv.) | 55 – 85+ µm | Z180 – Z275+ | Very High (Pressure) | Oil & Gas / High Pressure |
Welded (ERW) | 40 – 60 µm | Z120 – Z180 | High | Water Systems / Construction |
Common Pipe Sizes and Specifications
Understanding galvanized pipe sizes and specifications is essential for ensuring compatibility across piping systems and structural applications. Galvanized steel pipes follow standard dimensions and specifications, mainly covering the following three pillars:
- Material Quality (ASTM A53): The primary specification for basic pipe requirements (steel composition, type, strength, pressure ratings, etc.)
- Dimensions & Sizing (ASME B36.10M): The global standard for pipe lengths, diameters, and wall thicknesses (Schedules)
- Coating Performance (ASTM A123): The high-level standard for hot-dip galvanizing quality and zinc thickness.
Given below are a few of the important specifications to consider when buying a galvanized steel pipe.
Outer Diameter
Steel pipes are available in sizes ranging from ½ to 24 inches (21.3 mm to 609.6 mm). Selecting the correct diameter is important for flow capacity, pressure requirements, and proper system integration.
In the industry, we use NPS (Nominal Pipe Size) to identify pipes. However, it is important to remember that for pipes under 12 inches, the NPS does not match the actual outside diameter. For example, a 2-inch NPS pipe actually has an OD of 2.375 inches.
Wall Thickness
Wall thickness determines the pipe’s strength and pressure-handling capacity. It is classified using standard schedules such as SCH 40, SCH 80, and SCH 160. Higher schedules indicate thicker walls, which are preferred for high-pressure systems and structural applications.
Length Options
To minimize waste on your job site, galvanized pipes are typically supplied in three standard formats:
- Single Random Length (SRL): Usually ranges from 5 to 7 meters.
- Double Random Length (DRL): Usually ranges from 11 to 13 meters, ideal for long-distance pipelines.
- Fixed Lengths: Most commonly cut to exactly 6 meters or 12 meters to optimize space in shipping containers.
Standard Supply Forms
The way your pipe connects to the rest of your system depends on its end finish. Based on this end finish, you can find different forms of pipes in the market.
- Threaded and Coupled (T&C): The pipe ends are cut with tapered threads, and one end comes with a coupling already attached. This is the standard for screw-together plumbing.
- Plain End (PE): The pipe is cut square at 90 degrees. This is used for slip-on mechanical couplings or low-pressure structural sockets.
- Beveled End (BE): The ends are angled (usually at 30 or 37.5 degrees) to allow for high-strength butt-welding, ensuring deep weld penetration.
Summary of Standard Galvanized Steel Pipe Specifications
Here’s a quick summary of the main dimensional specifications of a galvanized steel pipe.
Parameter | Standard Range |
Outer Diameter | ½ inch to 24 inches |
Wall Thickness | 1.5 mm to 12 mm |
Length | 6 m / 12 m standard |
Forms | Plain end, threaded, grooved |
Key Benefits of Galvanized Steel Pipe
The main reason you choose galvanized steel is its ability to perform under pressure while resisting environmental degradation.
Corrosion resistance
The zinc coating provides a chemical shield that is far more effective than standard paint or oil-based coatings. This makes galvanized pipe the reliable choice for humid or coastal environments where moisture is constant.
Long service life
Under indoor conditions, galvanized steel pipes can provide a 50 – 70-year service life. Even in exposed outdoor environments, these pipes typically last 20 to 50 years, depending on the air quality and moisture levels.
High strength and durability
Unlike plastic alternatives like PVC or PEX, galvanized steel maintains its shape and strength under extreme heat and physical load. It is the go-to material for heavy-duty structures.
Reduced maintenance
Because the zinc coating is metallurgically bonded to the steel, it does not flake or peel like paint coatings. Therefore, you need minimal maintenance, lowering long-term costs compared to untreated steel.
Common Applications of Galvanized Steel Pipes
Due to their strength and protective coating, galvanized piping systems are found across almost every industrial sector.
Water supply systems
Although modern residential plumbing has shifted toward other materials, galvanized steel plumbing is still popular in commercial and municipal systems. Galvanized pipes find many applications in fire sprinkler lines and non-potable water transport, where pressure ratings are high.
Construction and scaffolding
In the construction sector, strength is the non-negotiable factor. That’s why the high-strength galvanized tubing has become the industry standard for structural frameworks and scaffolding. They offer a safe, high-strength platform that can withstand repeated assembly and outdoor exposure.
Fencing
Because of the clean finish and the cost-effectiveness, pre-galvanized pipes are a popular choice for residential fencing. In heavy industrial or coastal sites, hot-dip galvanized pipes are used to achieve extra-thick protection needed to resist corrosion and moisture.

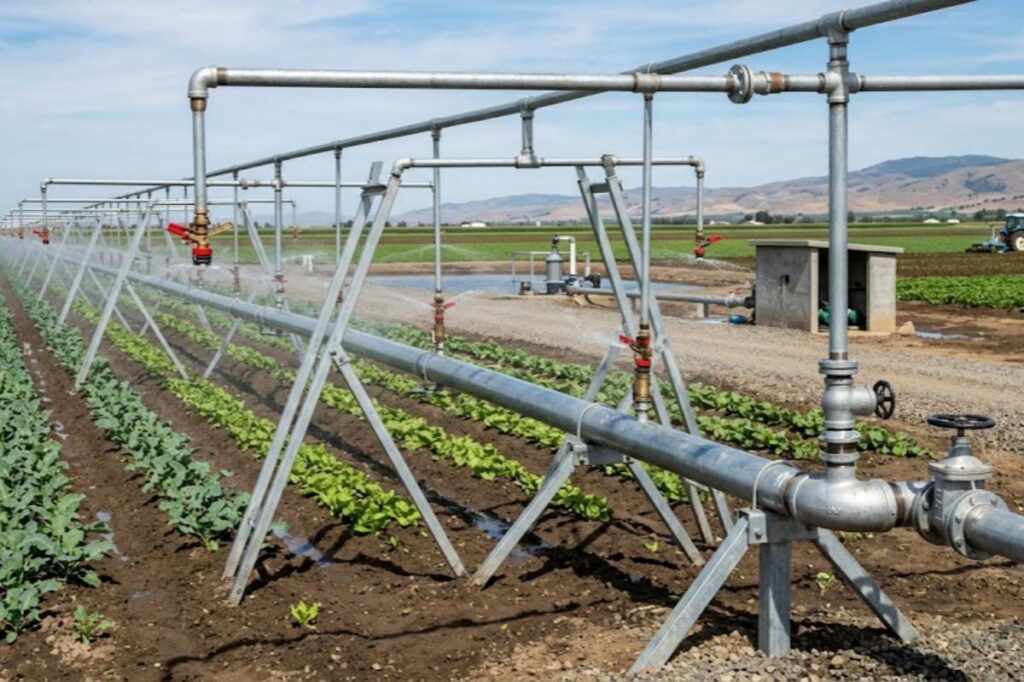

Agricultural structures
Because of the high durability of GI pipes, they are ideal for greenhouses, irrigation frameworks, and livestock enclosures. It is a trusted choice among farmers for withstanding constant humidity and bearing heavy loads.
General industrial use

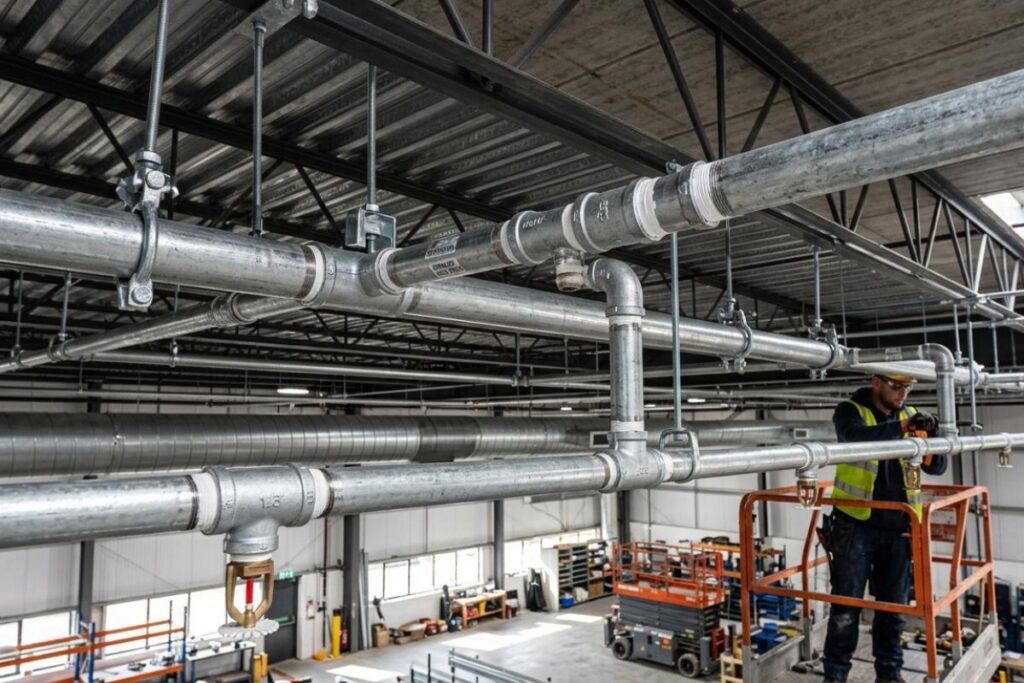

Beyond specialized sectors, these pipes are one of the dominant types in general-purpose applications. They are commonly used in electrical wiring, industrial machinery, and compressed air lines on factory floors where both physical protection and corrosion resistance are equally important.
Galvanized Steel Pipe vs. Copper Pipe
Copper tubing is considered a better choice for drinking water systems today due to its smooth interior and safety. However, copper pipes are significantly more expensive than galvanized pipes. Therefore, galvanized steel pipes are still the most cost-effective option for structural and outdoor applications.
Feature | Galvanized Pipe | Copper Pipe |
Cost | Lower | Higher |
Corrosion Resistance | Good | Excellent |
Lifespan | 20 – 50 years | 50+ years |
Plumbing Use | Moderate | Preferred |
Strength | High | Moderate |
How to Choose the Right Galvanized Steel Pipe
For successful procurement, you must match the pipe to the service environment. You need to consider the three aspects below for complete and smart decision-making.
Identify the Environment
You must first verify the ISO 12944-2 corrosivity category of your site. Then, the specifications of the pipe should be matched accordingly. For example, a C5 (Marine/Industrial) environment requires a significantly thicker zinc coating than a C2 (Inland/Rural) environment.
Evaluate Size and Load Needs
You can refer to ASME B36.10M to select the correct Schedule (wall thickness) for your specific performance needs. Schedule 40 is considered the standard pipe for general-purpose applications. Upgrading to schedule 80 or higher is recommended for high-pressure or heavy structural loads.
Fabrication Requirements
If you plan to weld on-site, the damage caused by the welding heat should be addressed. Many manufacturers recoat the joints with an additional zinc-rich paint after welding.
Why Work with a Reliable Galvanized Steel Pipe Supplier
In the global steel market, choosing a reputable supplier is critical to maintain the quality and consistency of your project. A reliable supplier can provide:
- Certified zinc quality that meets the ASTM standard for thickness and adhesion.
- High-dimensional accuracy so that your fittings and valves always match.
- Export-ready packaging, including protective bundling and oiling to prevent white rust during sea transit.
- Bulk supply capability, especially for repeated orders, replacements, and consistency across batches.
Conclusion
In your projects, selecting the right galvanized steel pipe is a critical part of long-term risk management. By understanding the advantages of the zinc coating and matching your specifications to the environment, you can ensure a secure installation that lasts for decades. For your next project, prioritize quality documentation and standard-compliant materials to get the most value out of your steel investment.
